One-way flow control valve

GTIN: 4052568110352

3633

SKU: GG-1/4-3/8

Description

Valve function Flow control non-return function
Pneumatic connection 1 G1/4
Pneumatic connection 2
Actuation type Mechanical
Adjusting element Roller lever
Type of mounting With through-hole
Standard nominal flow rate in flow control direction 870 l/min
Standard nominal flow rate in non-return direction 1150 l/min
Operating pressure 0.03 bar … 8 bar
Operating pressure 0.43 psi … 116 psi
Ambient temperature -10 °C … 60 °C
Housing material Wrought aluminum alloy
Mounting position Any

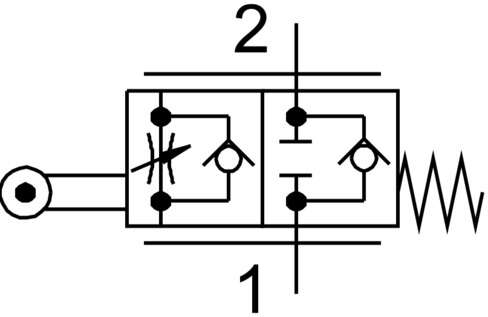

Symbol 00991465
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Temperature of medium -10 °C … 60 °C
Product weight 380 g
Seals material NBR

Technical data
