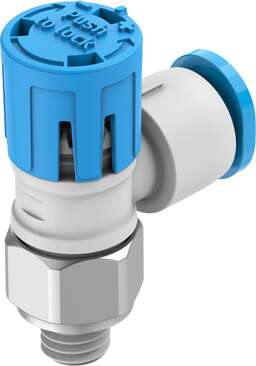

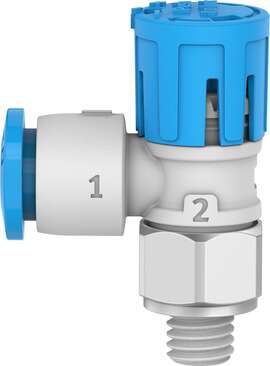

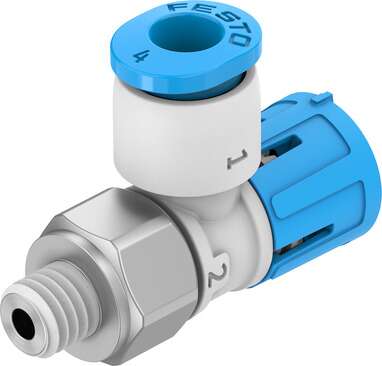

One-way flow control valve

GTIN: 4052568590000

8157642

SKU: VFOE-LE-T-M5-Q4-F1A

Description

Valve function Exhaust air flow control non-return function
Pneumatic connection 1 QS-4
Pneumatic connection 2 M5
Actuation type Manual
Adjusting element Rotary knob with detent
Type of mounting Screw-in
Standard nominal flow rate in flow control direction 90 l/min
Standard nominal flow rate in non-return direction 50 l/min … 90 l/min
Ambient temperature -10 °C … 60 °C
Housing material PBT
Mounting position Any
Symbol 00991452
Width across flats 9 mm
Rotatability 360 deg/continuous swiveling not permissible
Variants Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils.
Operating pressure for entire temperature range 0.02 MPa … 1 MPa
Operating pressure for entire temperature range 0.2 bar … 10 bar
Operating pressure for entire temperature range 2.9 psi … 145 psi
Standard flow rate in flow control direction 6 -> 0 bar 150 l/min
Standard flow rate in non-return direction at 6 -> 0 bar 130 l/min … 160 l/min
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity VDMA24364 zone III
Suitability for the production of Li-ion batteries Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Cleanroom class Class 4 according to ISO 14644-1
Temperature of medium -10 °C … 60 °C
Max. tightening torque 2.4 Nm
Nominal tightening torque 2 Nm
Tolerance for nominal tightening torque ± 20%
Product weight 3.3 g
Note on materials RoHS-compliant
Cover material PBT
Material of dynamic seals HNBR
Threaded bolt material Steel, chemically nickel-plated
Releasing ring material PBT
Static seal material NBR
