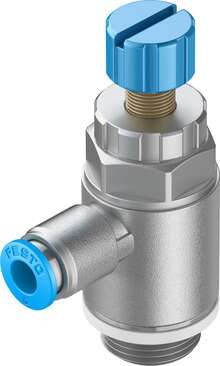

| Valve function | Flow control non-return function |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Actuation type | Manual |
| Adjusting element | Slotted screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 95 l/min |
| Standard nominal flow rate in non-return direction | 77 l/min … 95 l/min |
| Operating pressure | 0.02 MPa … 1 MPa |
| Operating pressure | 0.2 bar … 10 bar |
| Operating pressure | 2.9 psi … 145 psi |
| Ambient temperature | -20 °C … 80 °C |
| Maritime classification | See certificate |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Mounting position | Any |
| Symbol | 00991452 |
| Rotatability | 360 deg/continuous swiveling not permissible |
| Standard flow rate in flow control direction 6 -> 0 bar | 165 l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 140 l/min … 150 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Statically installed element, no meaningful evaluation possible according to ISO 14644-1 |
| Storage temperature | -10 °C … 40 °C |
| For use in the food industry | See supplementary material information |
| Temperature of medium | -10 °C … 60 °C |
| Nominal width | 2 mm |
| Max. tightening torque | 1.5 Nm |
| Permissible actuation moment, adjusting screw | 0.2 Nm |
| Product weight | 10.2 g |
| Note on materials | RoHS-compliant |
| Seals material | FPMPVC |
| Hollow bolt material | High-alloy steel |
| Material of adjusting screw | High-alloy stainless steel |
| Swivel joint material | High-alloy stainless steel |
