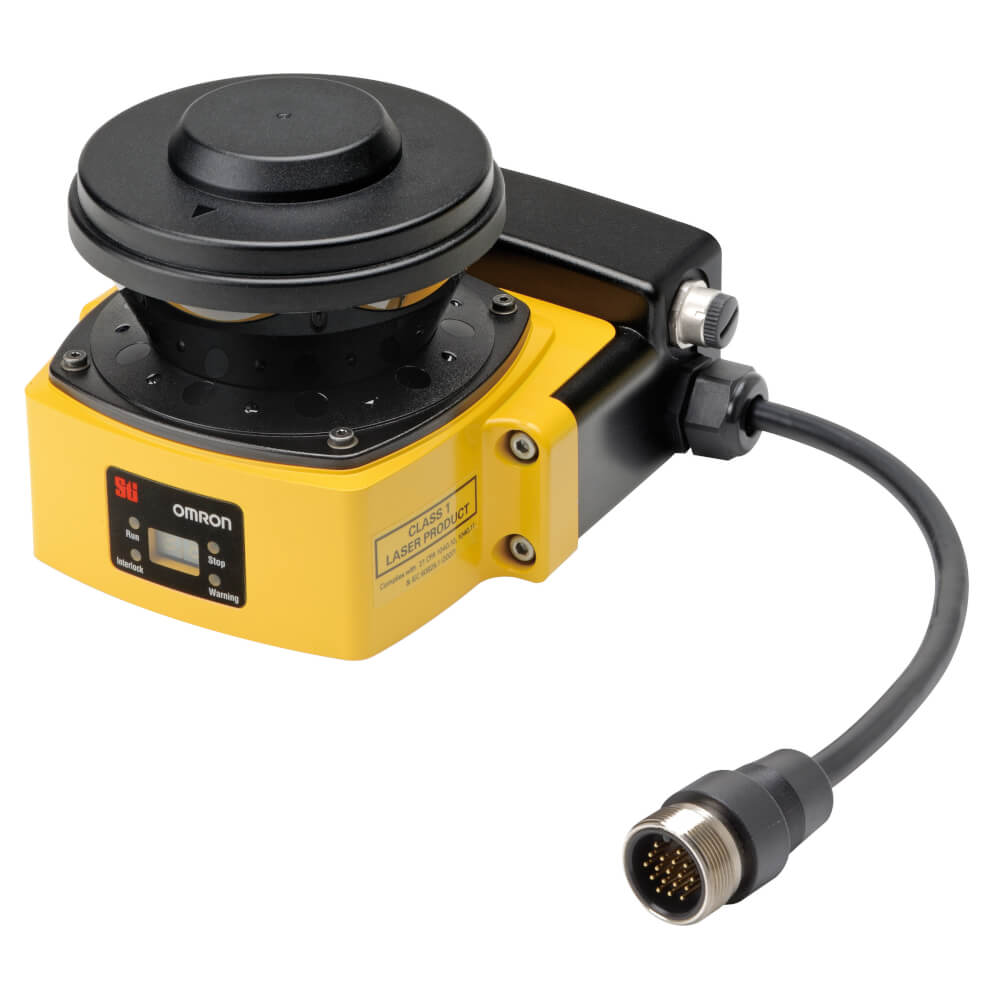

Safety laser scanner, safety radius 3 m, warning zone 10 m, PLd & Cat 3 (ISO 13849-1), Ethernet, 24 VDC, side location cable exit
| Type of safety according to IEC 61496-1 | 3 |
| Maximum safety range | 3 m |
| Maximum warning range | 10 m |
| Cable entry direction | Side |
| Type of switching output of the OSSD | PNP |
| Connection method | Pigtail connector |
| Key features | Configurable object resolution of 30, 40, 50 or 70 mm, Manual/auto start, Reference boundary monitoring |
| Type of protection | Hand protection |
| Detection capability | 70 mm |
| Suitable for safety functions | ✔️ |
| Scan angle | 270 ° |
| Scanning interval | 0.4 Hz |
| Response time | 80 ms |
| Number of safety fields | 140 |
| Wavelength of the sensor | 905 nm |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 2 |
| Laser protection class | Class 1 |
| Supply voltage DC | 16.8-30 V |
| Voltage type | DC |
| Max. output current at protected output | 250 mA |
| Degree of protection (IP) | IP65 |
| With alert field output | ✔️ |
| Ambient temperature | -10-50 °C |
| Overall length | 143 mm |
| Height of sensor | 105 mm |
| Width of sensor | 105 mm |
 |
OS32C-BKT1 | Bottom/side mounting bracket + unit mounting screws |
|
 |
OS32C-BKT2 | Accessory safety, laser scanner mounting kit, XY rotational mounting, must be used with OS32C-BKT1 |
|
 |
OS32C-BKT3 | Simple mounting brackets x 2 + mounting screws |
|
 |
OS32C-BKT4 | Safety laser scanner protective cover for window |
|
 |
OS32C-CBL-03M | Safety laser scanner power and I/O cable, 3m |
|
|
OS32C-CBL-10M | Safety laser scanner power and I/O cable, 10m |
|
|
OS32C-CBL-20M | Safety laser scanner power and I/O cable, 20m |
|
 |
OS32C-ECBL-02M | Ethernet cable, for configuration and monitoring, 2 m |
|
|
OS32C-ECBL-05M | Ethernet cable, for configuration and monitoring, 5 m |
|
|
OS32C-ECBL-15M | Ethernet cable, for configuration and monitoring, 15 m |
|
 |
WIN-CLN-KT | Accessory safety, cleaning kit |
|
 |
OS32C-CBSP1 | Accessory safety, laser scanner, spare for replacement, I/O block with cable access from left side |
|
 |
OS32C-SN VER2 | Accessory safety, laser scanner, spare for replacement, sensor block without I/O block, Ver.2 |
|
 |
OS32C-WIN-KT | Accessory safety, laser scanner, spare for replacement, Scan window |
|
