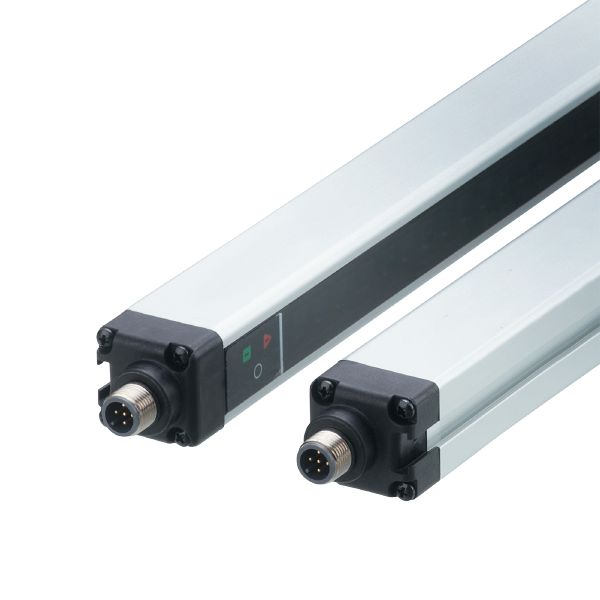

Product characteristics
| Type of light |
infrared light |
| Electrical design |
PNP/NPN; (parameterisable) |
| Protection |
IP 65; IP 67 |
Electrical data
| Operating voltage [V] |
19.2…28.8 DC |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Max. power-on delay time [ms] |
300 |
| Type of light |
infrared light |
| Wave length [nm] |
880 |
Receiver
| Current consumption [mA] |
85 |
Transmitter
| Current consumption [mA] |
15 |
Inputs / outputs
| Number of inputs and outputs |
Number of digital outputs: 1 |
Outputs
| Electrical design |
PNP/NPN; (parameterisable) |
| Number of digital outputs |
1 |
| Output function |
normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] |
2 |
| Max. current load per output [mA] |
100 |
| Switching frequency DC [Hz] |
16 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
Detection zone
| Number of beams |
15 |
| Sensing field height [mm] |
140 |
| Sensing field width (low light intensity) [m] |
0…2 |
| Sensing field width (high light intensity) [m] |
1…10 |
| Distance between beams [mm] |
10 |
Software / programming
| Parameter setting options |
hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode |
Interfaces
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel |
| SIO mode |
yes |
| Required master port type |
A |
| Min. process cycle time [ms] |
10 |
| IO-Link process data (cyclical) |
| function |
bit length |
| process value |
80 |
| device status |
4 |
| binary switching information |
2 |
|
| IO-Link functions (acyclical) |
application specific tag; operating hours counter |
| Supported DeviceIDs |
| Type of operation |
DeviceID |
| Default |
1399 |
|
| Note |
| For further information please see the IODD PDF file under “Downloads” |
|
Operating conditions
| Ambient temperature [°C] |
-10…55 |
| Storage temperature [°C] |
-25…70 |
| Protection |
IP 65; IP 67 |
| Max. immunity to extraneous light [klx] |
10 |
Tests / approvals
| EMC |
| EN 61000-4-2 ESD |
4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
3 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
3 V |
| EN 55011 |
Class A |
|
| Vibration resistance |
| EN 60068-2-6 Fc |
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
|
| Shock resistance |
| EN 60068-2-27 Ea |
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
|
| MTTF [years] |
389 |

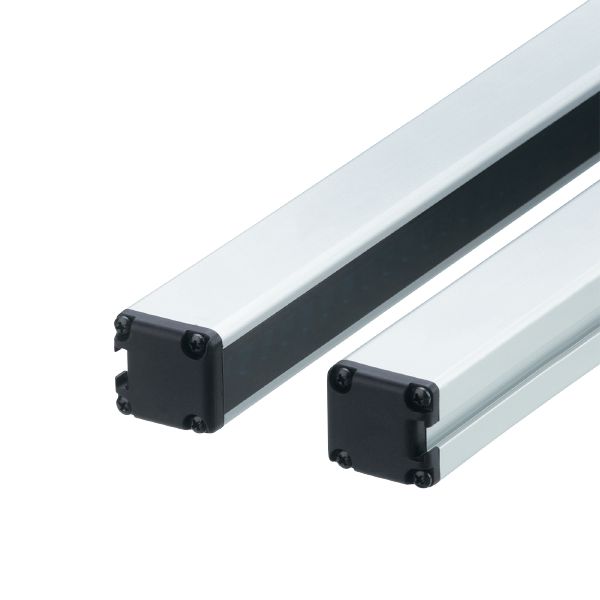

Mechanical data
| Weight [g] |
1079.1 |
| Housing |
rectangular |
| Dimensions [mm] |
213 x 28 x 30 |
| Materials |
housing: aluminium; front pane: PC |
| Length L [mm] |
213 |
Displays / operating elements
| Display |
| transmitter |
2 LED |
| receiver |
3 LED |
|
Accessories
| Items supplied |
| mounting bracket: 2 |
| slot nuts: 2 |
| Nuts |
|
Electrical connection – receiver
| Connection |
Connector: 1 x M12; coding: A |
Electrical connection – transmitter
| Connection |
Connector: 1 x M12; coding: A |
