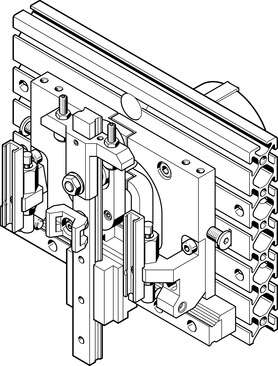

| Size | 12 |
| Y-stroke | 52 mm … 68 mm |
| Z-stroke | 20 mm … 30 mm |
| Z working stroke | 15 mm |
| Cushioning | Pneumatic shock absorber at both endsSoft characteristic curve |
| Mounting position | Guide railVertical |
| Structural design | Actuator shaftCross guidePositively driven motion sequence |
| Position sensing | For proximity sensor |
| Protection against torsion/guide | Cross guide |
| Minimum cycle time | 0.6 s |
| Repetition accuracy | ±0.01 mm |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | 0 °C … 60 °C |
| Max. driving torque on actuator shaft | 1.25 Nm |
| Max. axial force at actuator shaft | 18 N |
| Max. torque Mx dynamic | 1.1 Nm |
| Max. static moment Mx | 5 Nm |
| Max. torque My dynamic | 1.1 Nm |
| Max. static moment My | 5 Nm |
| Max. torque Mz dynamic | 1.1 Nm |
| Max. static moment Mz | 5 Nm |
| Max. payload | 0.5 kg |
| Max. radial force on actuator shaft | 45 N |
| Theoretical force at 6 bar | 40 N |
| Product weight | 2500 g |
| Front unit mounting | With through-hole |
| Type of mounting | With through-holeWith slot nuts |
| Base plate material | Wrought aluminum alloy |
| Cross guide material | Tempered steel |
| Side covers material | Wrought aluminum alloy |
