Piezo valve

GTIN: 4052568443375

8065738

SKU: VEMP-BS-3-16-D5-F-28T1

Description

Pack size 1
Symbol 00992802
Note on degree of protection Depending on manifold block
Standard nominal flow rate 18 l/min
Standard nominal flow rate 2-3 19 l/min
Flow direction Non-reversible
Nominal operating pressure 0.5 bar
Operating pressure 0 bar … 0.7 bar

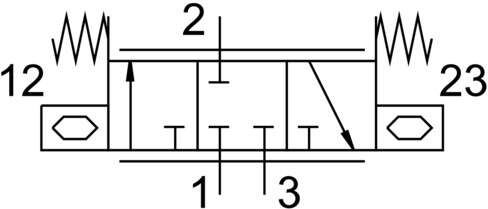

Valve function 3/3, closed, monostable
Nominal width 1.6 mm
Actuation type Electrical
Pneumatic connection 1 Flange
Pneumatic connection 2 Flange
Pneumatic connection 3 Flange
Medium Inert gasAirOxygen (oxygen applications according to IEC 60601-1 only on request)Nitrogen
Special features Oxygen-compatible as per DIN EN 1797
Operating medium Compressed air as per ISO 8573-1:2010 [5:3:1]
Information on operating and pilot media Operation with oil lubrication not possible
Grade of filtration 5 µm
Relative air humidity 0 – 70 %Non-condensing
Pressure dew point -20 °C
Max. switching frequency 5 Hz
Temperature of medium -20 °C … 60 °C
Ambient temperature -20 °C … 70 °C
Storage temperature -20 °C … 70 °C
Nominal operating voltage DC 310 V
DC operating voltage range 0 V … 310 V
Max. current consumption 5 mA
Max. electrical power consumption 0 W
Product weight 8 g
Seals material EPDM
Housing material PA-reinforced
Cover material PA-reinforced
Note on materials RoHS-compliant
Width dimension 17.2 mm
Dimensions W x L x H 17.2 mm x 52.1 mm x 7.2 mm
Type of mounting On terminal stripOn sub-base
Mounting position Any
CE marking (see declaration of conformity) As per EU low voltage directive
