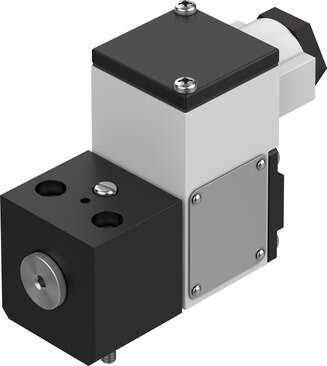

| Valve function | 3/2, closed, monostable |
| Actuation type | Electrical |
| Operating pressure | -0.09 MPa … 0.8 MPa |
| Operating pressure | -0.9 bar … 8 bar |
| Operating pressure | -13.05 psi … 116 psi |
| Structural design | Shut off valve |
| Reset method | Mechanical spring |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Explosion protection certification outside the EU | EPL Da (CN)EPL Da (IEC-EX)EPL Ga (CN)EPL Ga (IEC-EX) |
| Certificate issuing authority | ATEX: CML 17 ATEX 2046XCCC-Ex: 2020322307001726IEC: IECEx CML 17.0030X |
| ATEX category gas | II 1G |
| ATEX category for dust | II 1D |
| Type of ignition protection for gas | ATEX: Ex ia IIC T6…T5 GaCCC-Ex: Ex ia IIC T5/T6 Ga |
| Type of (ignition) protection for dust | ATEX: Ex ia IIIB T135°C DaCCC-Ex: Ex iaD 20 T135°C |
| Explosive ambient temperature | ATEX: -40°C <= Ta <= +65°CCCC-Ex: -40°C <= Ta <= 50°C/65°C |
| Degree of protection | IP65 |
| Manual override | Detenting |
| Flow direction | Non-reversible |

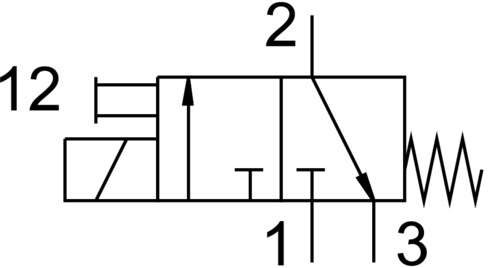

| Symbol | 00991308 |
| Duty cycle | 100% |
| Insulation class | H |
| Max. input power Pi | -40°C ~+50°C T6 = 2.98W-40°C ~+65°C T135°C = 2.98W-40°C ~+65°C T5 = 2.98W-40°C ~+65°C T6 = 1W |
| Max. input voltage Vi | 31 V |
| Max. input current Ii | 0.67 A |
| Coil characteristics | 24 V DC: 1.5 W |
| Effective internal inductance Li | Negligibly low |
| Effective internal capacitance Ci | Negligibly low |
| Permissible frequency fluctuations | +/- 10% |
| Explosion prevention and protection | Zone 0 (ATEX)Zone 1 (ATEX)Zone 2 (ATEX)Zone 20 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 0 (IEC-EX)Zone 20 (IEC-EX)Zone 0 (CN)Zone 20 (CN) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -20 °C … 80 °C |
| Type of mounting | CNOMO |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
