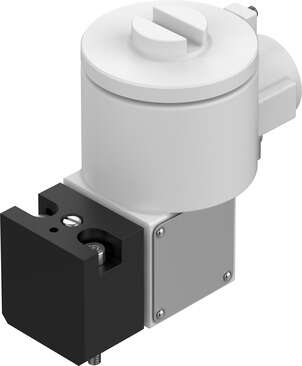

| Valve function | 3/2, closed, monostable |
| Actuation type | Electrical |
| Operating pressure | -0.09 MPa … 0.8 MPa |
| Operating pressure | -0.9 bar … 8 bar |
| Operating pressure | -13.05 psi … 116 psi |
| Structural design | Shut off valve |
| Reset method | Mechanical spring |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| Explosion protection certification outside the EU | EPL Db (CN)EPL Db (IEC-EX)EPL Gb (CN)EPL Gb (IEC-EX) |
| Certificate issuing authority | ATEX: CML 15 ATEX 1119XCCC-Ex: 2020322307001701IEC: IECEx CML 17.0147X |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | ATEX: Ex db IIC T4 GbCCC-Ex: Ex d IIC T3/T6 Gb |
| Type of (ignition) protection for dust | ATEX: Ex tb IIIC T135°C DbCCC-Ex: Ex tD A21 IP66 T85°C/T200°C |
| Explosive ambient temperature | ATEX: -65°C <= Ta <= +40°CCCC-Ex: -20°C <= Ta <= +40°C |
| Degree of protection | IP66 |
| Manual override | Detenting |
| Flow direction | Non-reversible |
| Symbol | 00991308 |
| Duty cycle | 100% |
| Insulation class | H |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 10.0 VA, holding power 6.0 VA |
| Permissible frequency fluctuations | +/- 10% |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 1 (IEC-EX)Zone 21 (IEC-EX)Zone 1 (CN)Zone 21 (CN) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Ambient temperature | -20 °C … 80 °C |
| Type of mounting | CNOMO |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
