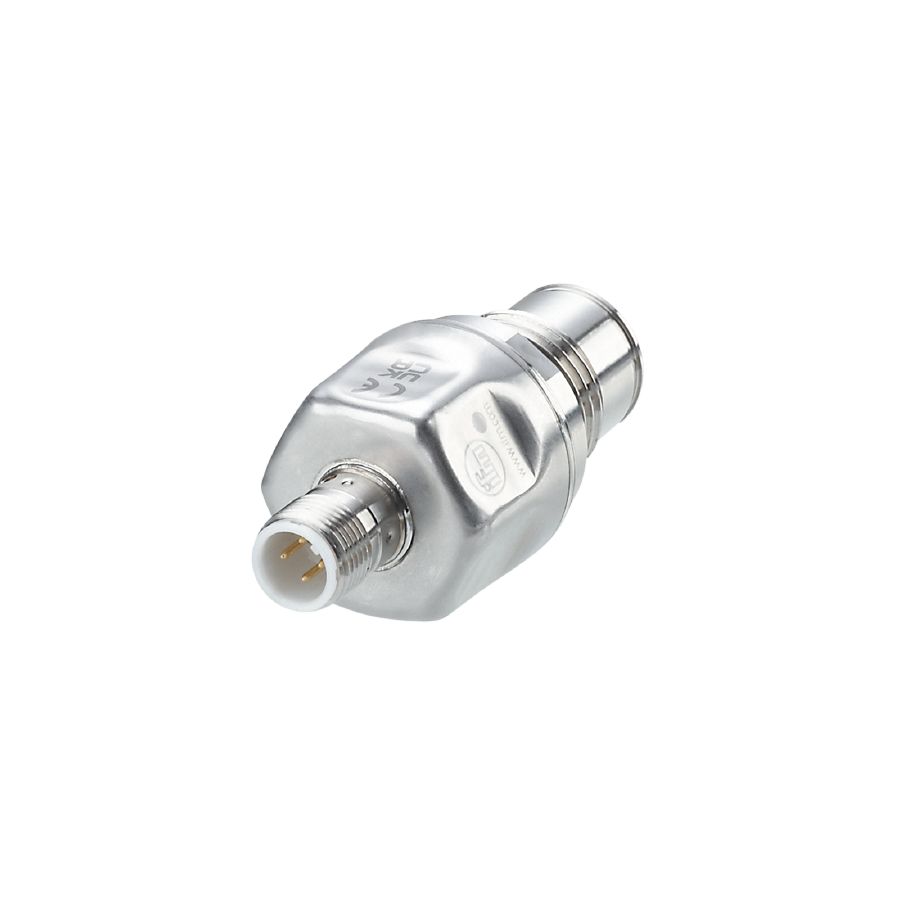

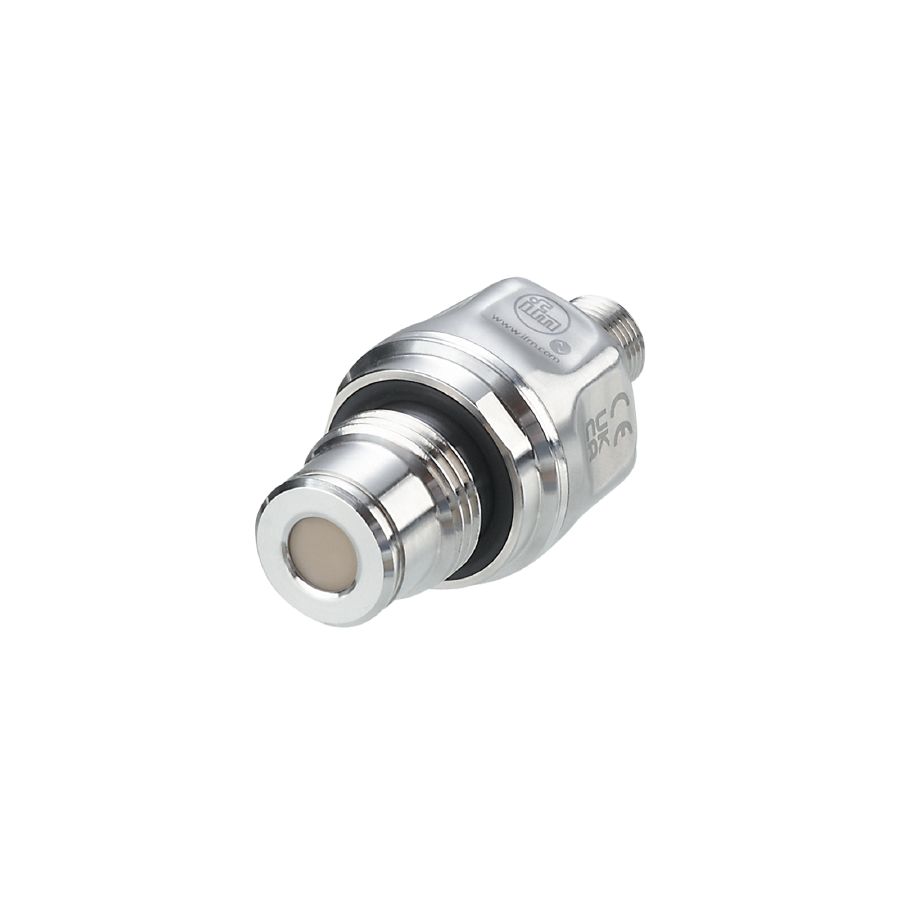

PL1504

Description

Product characteristics

Measuring range

-1…10 bar

-14.5…145 psi

-0.1…1 MPa

Process connection

threaded connection G 1/2 external thread

Application

Special feature

Gold-plated contacts

Measuring element

ceramic-capacitive pressure measuring cell

Temperature monitoring

yes

Application

flush mountable for industrial applications; for industrial applications

Media

viscous media and liquids with suspended particles; Liquids

Medium temperature [°C]

-25…110; (flush mount zero-leak using metal-to-metal seal. for permissible temperatures of other sealing versions, see sealing materials under “Accessories”)

Min. bursting pressure

175 bar

2538 psi

17 MPa

Pressure rating

70 bar

1015 psi

7 Mpa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure; vacuum

No dead space

yes

Electrical data

Operating voltage [V]	9.6…30 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

2-wire

Current consumption [mA]	3.5…21.5
Power-on delay time [s]	< 1

3-wire

Current consumption [mA]	< 30
Power-on delay time [s]	< 0.5

Outputs

Total number of outputs	2
Output signal	analogue signal; IO-Link (configurable)
Analogue current output [mA]	4…20; (scalable; 1:5)
Max. load [Ω]	(Ub – 9,6 V) / 21,5 mA; 670 Ω (Ub = 24 V)
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range

-1…10 bar

-14.5…145 psi

-0.1…1 MPa

Analogue start point

-1…8 bar

-14.5…116 psi

-0.1…0.8 MPa

Analogue end point

1…10 bar

14.5…145 psi

0.1…1 MPa

In steps of

0.002 bar

0.2 psi

0.0002 MPa

Factory setting

ASP = 0.0 bar	AEP = 10.0 bar
ASP = 0.0 psi	AEP = 145.0 psi
ASP = 0.0 MPa	AEP = 1.0 MPa

Temperature monitoring

Measuring range

-25…110 °C

-13…230 °F

Accuracy / deviations

Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
Characteristics deviation [% of the span]	< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)
Linearity deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Hysteresis deviation [% of the span]	< ± 0,15; (Turn down 1:1)
Long-term stability [% of the span]	< ± 0,1; (Turn down 1:1; per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,1 (-25…85 °C)< ± 0,3 (85…110 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,1 (-25…85 °C)< ± 0,3 (85…110 °C)

Temperature monitoring

Accuracy [K]	± 2.5 K + (0.045 x (ambient temperature – medium temperature))

Response times

Damping process value dAP [s]	0…99.99
Damping for the analogue output dAA [s]	0…99.99

2-wire

Step response time analogue output [ms]	12

3-wire

Step response time analogue output [ms]	3

Temperature monitoring

Dynamic response T05 / T09 [s]	< 10 / < 25; (DIN EN 60751 water; > 0,9 m/s)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)

SIO mode

Required master port type

A; (when pin 2 not connected: B)

Min. process cycle time [ms]

3.5

IO-Link resolution pressure [kPa]

0.002

IO-Link resolution temperature [K]

0.2

IO-Link process data (cyclical)

function	bit length
pressure	16
temperature	16
device status	4

IO-Link functions (acyclical)

application specific tag; internal temperature

Supported DeviceIDs

Type of operation	DeviceID
Default	1437

Operating conditions

Ambient temperature [°C]	-25…90
Storage temperature [°C]	-40…100
Protection	IP 67; IP 68; IP 69

Tests / approvals

EMC

DIN EN 61326-1

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10…2000 Hz)

MTTF [years]

427

UL approval

Enclosure type	Type 1
UL Approval no.	J050
File number UL	E174189

Mechanical data

Weight [g]	85.3
Materials	stainless steel (1.4435 / 316L); stainless steel (1.4404 / 316L); PA; PTFE; FKM
Materials (wetted parts)	stainless steel (1.4435 / 316L); Al2O3 (ceramics); surface characteristics : Ra < 0,4 / Rz 4; PTFE; (FKM for sealing with seal DIN EN ISO 1179-2, see operating instructions)
Min. pressure cycles	100 million
Tightening torque [Nm]	25
Process connection	threaded connection G 1/2 external thread
