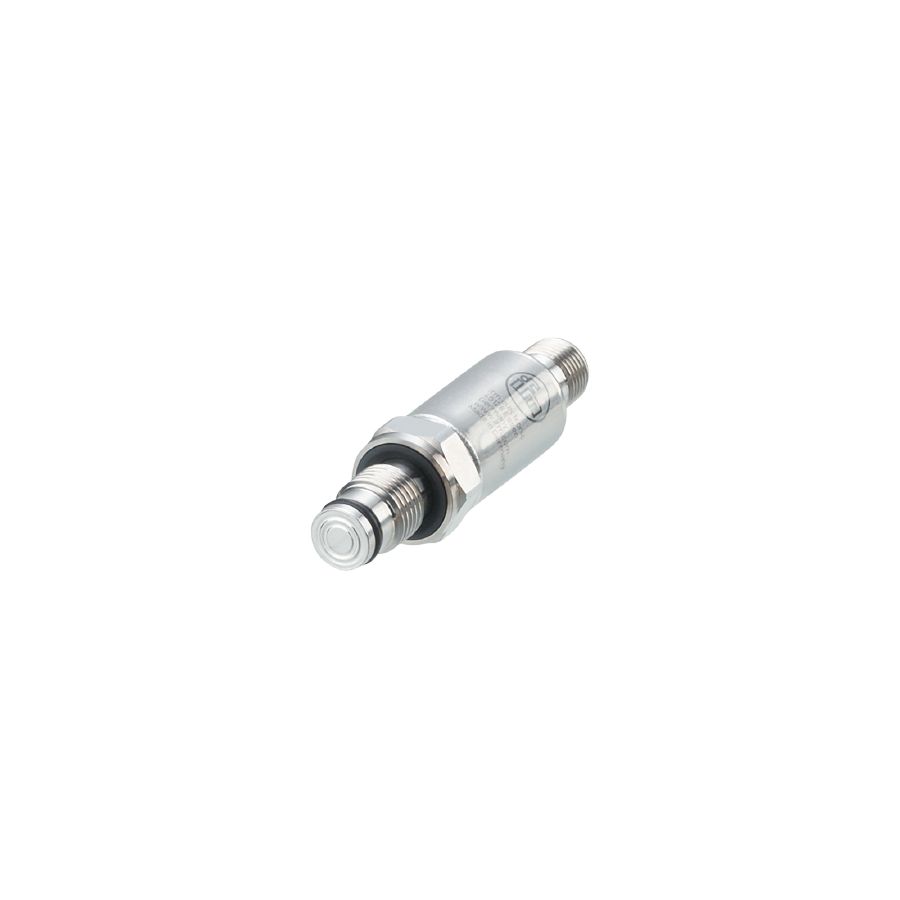

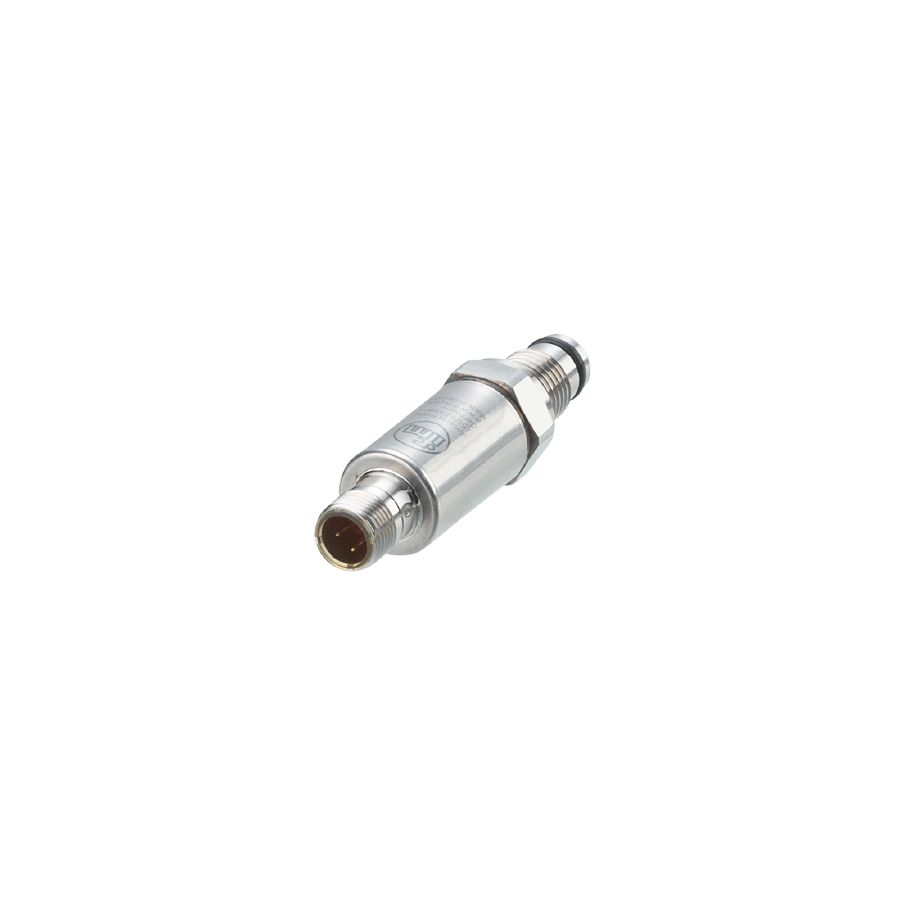

PL5412

Description

Product characteristics

Number of inputs and outputs

Number of analogue outputs: 1

Measuring range

0…160 bar

0…2320 psi

0…16 MPa

Process connection

threaded connection G 1/4 external thread

Application

Measuring element

thin film measuring cell with diaphragm seal technique

Application

flush mountable for industrial applications; for industrial applications

Media

viscous media and liquids with suspended particles; liquids and gases

Medium temperature [°C]

-20…90

Min. bursting pressure

1100 bar

15950 psi

110 MPa

Pressure rating

400 bar

5800 psi

40 Mpa

Note on pressure rating

static

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	8.5…36 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4…20
Max. load [Ω]	(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range

0…160 bar

0…2320 psi

0…16 MPa

Accuracy / deviations

Repeatability [% of the span]	< ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]	< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]	< ± 0,2
Long-term stability [% of the span]	< ± 0,1; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< 0,2 (-25…90 °C)
Temperature coefficient span [% of the span / 10 K]	< 0,15 (-25…90 °C)

Response times

Step response time analogue output [ms]	2

Operating conditions

Ambient temperature [°C]	-25…90
Storage temperature [°C]	-25…100
Protection	IP 67; IP 69K

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-3

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10…2000 Hz)

MTTF [years]

787

UL approval

UL Approval no.	J046
File number UL	E174189

Mechanical data

Weight [g]	65
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)	1.4542 (17-4 PH / 630); stainless steel (1.4435 / 316L); FKM
Min. pressure cycles	60 million; (at 1.2 times nominal pressure)
Tightening torque [Nm]	25…35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread
Process connection sealing	FKM
Fill fluid for pressure transfer	NEOBEE (food grade, FDA compliant)
