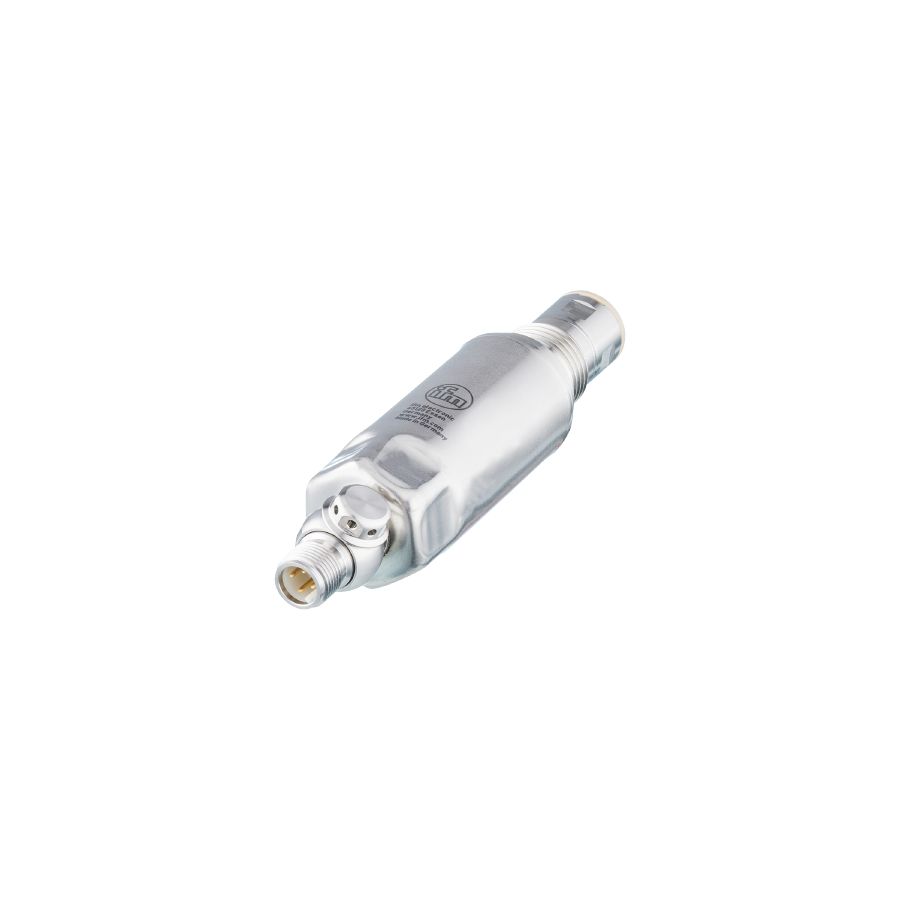

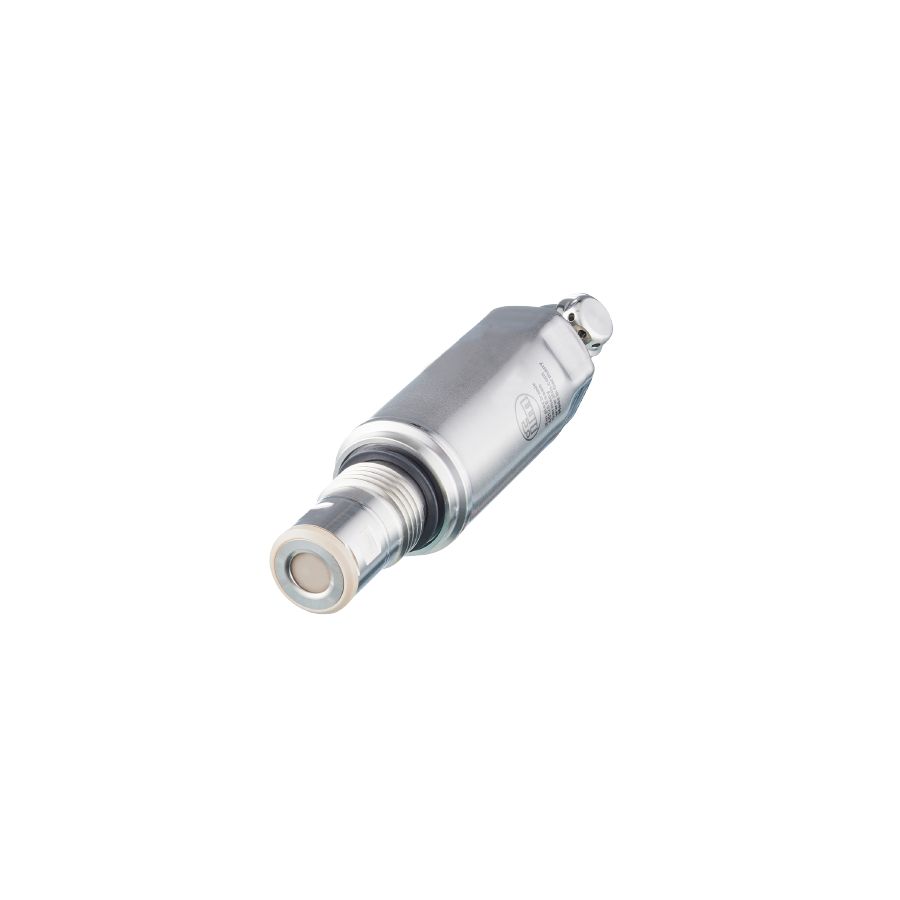

PM1505

Description

Product characteristics

Measuring range

-1…4 bar

-14.5…58 psi

-100…400 kPa

Process connection

threaded connection G 1/2 external thread sealing cone

Application

Special feature

Gold-plated contacts

Measuring element

ceramic-capacitive pressure measuring cell

Temperature monitoring

yes

Application

flush mountable for the food and beverage industry

Media

viscous media and liquids with suspended particles; liquids and gases

Conditionally suitable for

use in gases at pressures > 25 bar only on request

Medium temperature [°C]

-25…150

Min. bursting pressure

80 bar

1200 psi

8000 kPa

Pressure rating

40 bar

580 psi

4000 kPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure; vacuum

No dead space

yes

MAWP (for applications according to CRN) [bar]

Electrical data

Operating voltage [V]	18…30 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Integrated watchdog	yes

2-wire

Current consumption [mA]	3.5…21.5
Power-on delay time [s]	< 1

3-wire

Current consumption [mA]	< 45
Power-on delay time [s]	< 0.5

Outputs

Total number of outputs	2
Output signal	analogue signal; IO-Link
Analogue current output [mA]	4…20; (scalable; 1:5)
Max. load [Ω]	700; (Ub = 24 V; (Ub – 9 V) / 21.5 mA)
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range

-1…4 bar

-14.5…58 psi

-100…400 kPa

Analogue start point

-1…3.2 bar

-14.5…46.4 psi

-100…320 kPa

Analogue end point

0.2…4 bar

-2.9…58 psi

-20…400 kPa

In steps of

0.002 bar

0.05 psi

0.2 kPa

Factory setting

ASP = 0.0 bar

AEP = 4.0 bar

Temperature monitoring

Measuring range

-25…150 °C

-13…302 °F

Accuracy / deviations

Repeatability [K]

± 0,2

Resolution [K]

0.2

Repeatability [% of the span]

< ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)

Characteristics deviation [% of the span]

< ± 0,5; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1)

Linearity deviation [% of the span]

< ± 0,15; (Turn down 1:1)

Hysteresis deviation [% of the span]

< ± 0,15; (Turn down 1:1)

Long-term stability [% of the span]

< ± 0,1; (Turn down 1:1; per year)

Total deviation over temperature range

Temperature range	total deviation
-25…15 °C	Characteristics deviation ± 0,05 % der Spanne / 10 K
15…80 °C	Characteristics deviation
80…150 °C	Characteristics deviation ± 0,1 % der Spanne / 10 K

Notes on the accuracy / deviation

for further details see section Diagrams and graphs

Temperature monitoring

Accuracy [K]	± 2.5 K + (0.045 x (ambient temperature – medium temperature))

Response times

Damping for the analogue output dAA [s]	0…4

2-wire

Step response time analogue output [ms]	30

3-wire

Step response time analogue output [ms]	7

Temperature monitoring

Dynamic response T05 / T09 [s]	< 10 / < 25; (DIN EN 60751 water; > 0,9 m/s)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)

SIO mode

Required master port type

A; (when pin 2 not connected: B)

Min. process cycle time [ms]

4.5

IO-Link resolution pressure [bar]

0.001

IO-Link resolution temperature [K]

0.2

IO-Link process data (cyclical)

function	bit length
pressure	16
temperature	16
device status	4

IO-Link functions (acyclical)

application specific tag; internal temperature

Supported DeviceIDs

Type of operation	DeviceID
Default	1023

Operating conditions

Ambient temperature [°C]	-25…80
Storage temperature [°C]	-40…100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC

DIN EN 61326-1

Shock resistance

DIN EN 60068-2-27

50 g (11 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10…2000 Hz)

MTTF [years]

322

UL approval

UL Approval no.	J024
File number UL	E174189

Mechanical data

Weight [g]	307.8
Materials	stainless steel (1.4404 / 316L); PTFE; FKM
Materials (wetted parts)	ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PEEK; PTFE
Min. pressure cycles	100 million
Tightening torque [Nm]	20
Process connection	threaded connection G 1/2 external thread sealing cone
