| Valve size | 27 mm |
| Width dimension | 28 mm |

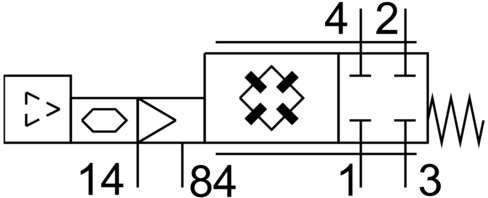

| Symbol | 00995604 |
| Valve function | Can be assigned using Motion App |
| Structural design | Piston seat |
| Sealing principle | Soft |
| Actuation type | Electrical |
| Type of control | Pilot-controlled |
| Reset method | Mechanical spring |
| Mounting position | Any |
| Exhaust air function | Without flow control option |
| Pilot air supply port | External |
| Suitability for vacuum | yes |
| Flow direction | Non-reversible |
| Degree of protection | IP65 |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant |
| Housing material | PA |
| Seals material | NBRTPE-U(PU) |
| Material fire test | UL94 HB |
| For use in the food industry | See supplementary material information |
| Product weight | 200 g |
| On switching time | 8.5 ms |
| Switching time off | 8.5 ms |
| Nominal width | 4.2 mm |
| C value | 2 l/sbar |
| Standard flow rate 0.8->0 MPa (8->0 bar, 116->0 psi) | 1000 l/min |
| Standard nominal flow rate pressurization 6->5 bar | 450 l/min |
| Standard nominal flow rate exhaust air 6->5 bar | 480 l/min |
| Status indicator | LED blue = normal stateLED red = malfunction |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possibleCondensation in the valve not allowed |
| Operating pressure | 0.3 MPa … 0.8 MPa |
| Operating pressure | 3 bar … 8 bar |
| Operating pressure | 43.5 psi … 116 psi |
| Pilot pressure MPa | 0.3 MPa … 0.8 MPa |
| Pilot pressure | 3 bar … 8 bar |
| Pilot pressure psi | 43.5 psi … 116 psi |
| Information on operating pressure | 0 – 8 bar with external pilot airVacuum operation at connection 3 only |
| Nominal operating voltage DC | 24 V |
| Permissible voltage fluctuations | +/- 25 % |
| Duty cycle | 100% |
| Electrical power consumption | 1.5 W |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Storage temperature | -20 °C … 40 °C |
| Temperature of medium | 5 °C … 50 °C |
| Ambient temperature | 5 °C … 50 °C |
| Relative air humidity | 0 – 90 % |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Pilot air port 14 | M5 |
| Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 |
| Pilot exhaust air port 84 | M7 |
| Venting hole connection | M7 |
