| Valve function | 5/3, closed |
| Actuation type | Pneumatic |
| Valve size | 21 mm |
| Standard nominal flow rate | 700 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | -0.09 MPa … 1 MPa |
| Operating pressure | -0.9 bar … 10 bar |
| Structural design | Piston gate valve |
| Reset method | Mechanical spring |
| Certification | c UL us – Recognized (OL) |
| Nominal width | 5 mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | None |
| Type of control | Direct |
| Pilot air supply port | Internal |
| Flow direction | Reversible |

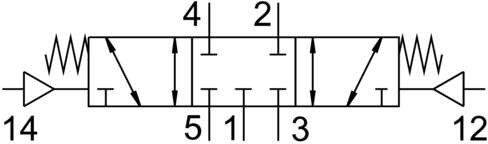

| Symbol | 00991018 |
| Lap | Overlap |
| Pilot pressure MPa | 0.25 MPa … 1 MPa |
| Pilot pressure | 2.5 bar … 10 bar |
| Switching time off | 44 ms |
| On switching time | 10 ms |
| Changeover time | 26 ms |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -10 °C … 60 °C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 207 g |
| Type of mounting | On terminal stripWith through-holeOptionally: |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Seals material | HNBRNBR |
| Housing material | Die-cast aluminumPainted |
| Piston slide material | High-alloy stainless steel |
| Material of screws | Steel, galvanized |
