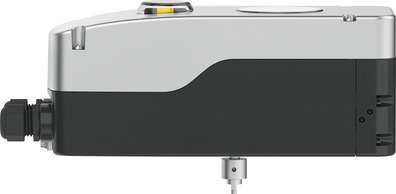

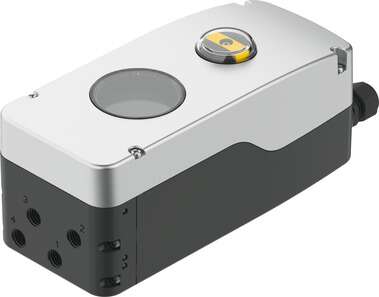

| Structural design | digital, electropneumatic positioner |
| Mode of operation | Double-acting |
| Design features | Safety pneumatic output 2 exhaustedSafety pneumatic output 4 pressurized |
| Mounting position | Any |
| Type of mounting | With accessoriesas per VDI/VDE 3845 |
| Measuring principle of linear potentiometer | Potentiometer |
| Sensing range | 0 deg … 115 deg |
| Display | LCD display, via software 90° rotatable |
| Setting options | Via display and pushbuttons |
| Cycle time | 20 ms |
| Nominal altitude of use above sea level | <= 2000 m NHN |
| Overvoltage category | II |
| Operating pressure | 0.14 MPa … 0.8 MPa |
| Operating pressure | 1.4 bar … 8 bar |
| Operating pressure | 20.3 psi … 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Air performance at Δp = 6 bar | 270 l/min |
| Pneumatic connection | G1/4 |
| Reverse polarity protection | yes |
| Connection resistance | 3 kOhm … 80 kOhm |
| Analog inputs, signal range | 4 – 20 mA with HART |
| Analog inputs, input impedance | 480 ohms at 20 mA |
| Analog inputs, overload protection | <65 mA |
| Analog inputs, galvanic isolation | yes |
| Input characteristics | 1x to IEC 61131-2, type 3 |
| Digital inputs, reverse polarity protection | yes |
| Digital inputs, electrical isolation | yes |
| Digital inputs, overload protection | 33 V |
| Electrical connection 1, function | Analog inputDigital inputexternal path/angle sensor |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, connection technology | Spring-loaded terminal |
| Electrical connection 1, number of pins/wires | 7 |
| Cable fitting | 2x M20x1.5 |
| Max. cable length | 30 m for external position sensorShielded |
| Ambient temperature | -40 °C … 80 °C |
| Note on ambient temperature | Display: -30 – 80°C |
| Storage temperature | -40 °C … 80 °C |
| Climatic category | 1K5 as per EN 60721 for storage4K3 as per EN 60721 for operation |
| Degree of protection | IP66IP67 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Contamination level | 3 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveAs per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCTo UK RoHS instructions |
| Housing material | Aluminum, powder-coated |
| Inspection window material | PC |
| Shaft material | High-alloy stainless steel |
| Quick-coupling material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Seals material | EPDMNBRVMQ |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant |
| Product weight | 2640 g |
