| Display range | 0 bar … 10 bar |
| Display range | 0 MPa … 1 MPa |

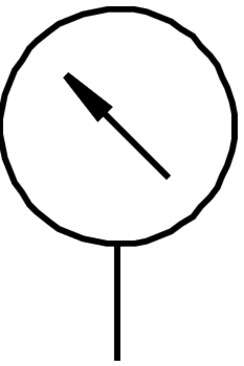

| Symbol | 00991463 |
| Pressure gauge nominal size | 26 |
| Structural design | Bourdon tube pressure gauge without measuring mechanism |
| Type of mounting | Line installation |
| Operating medium | Inert gasNeutral liquids |
| Operating pressure | 0 MPa … 1 MPa |
| Operating pressure | 0 bar … 10 bar |
| Operating pressure | 0 psi … 145 psi |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 4 |
| Degree of protection | IP43 |
| Storage temperature | -5 °C … 50 °C |
| Temperature of medium | -20 °C … 60 °C |
| Ambient temperature | -20 °C … 60 °C |
| Note on materials | RoHS-compliant |
| Connection position | Centered on rear side |
| Pneumatic connection | Cartridge 10 mm |
| Materials in contact with the media | Brass |
| Material of screwed trunnion | Brass |
| Housing material | PA |
| Inspection window material | PS |
| Housing colour | Black |
| Product weight | 15 g |
| Information on operating and pilot media | No acetyleneNo oxygen |

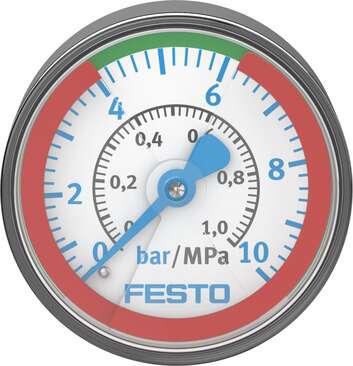

| Scale | Double scaleMPa (internal)bar (außen) |
