| Display range | 0 bar … 16 bar |
| Symbol | 00991463 |
| Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 63 |
| Explosion prevention and protection | Observe the information on the certificateZone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |

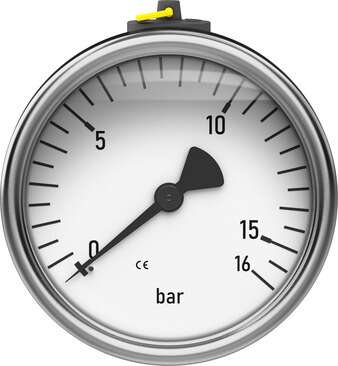

| Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation |
| Operating medium | Inert gasNeutral liquids |
| Operating pressure | 0 MPa … 1.6 MPa |
| Operating pressure | 0 bar … 16 bar |
| Operating pressure | 0 psi … 232 psi |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 1.6 |
| Degree of protection | IP65 |
| Storage temperature | -40 °C … 70 °C |
| Temperature of medium | -40 °C … 200 °C |
| Ambient temperature | -40 °C … 60 °C |
| Note on materials | RoHS-compliant |

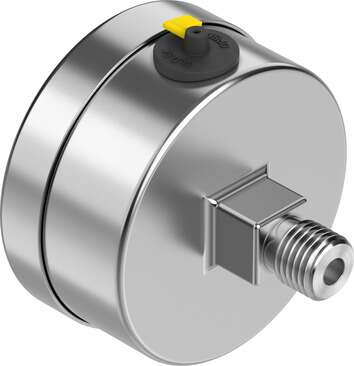

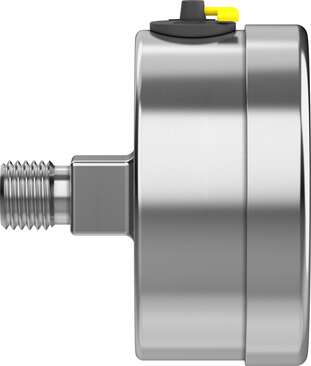

| Connection position | Centered on rear side |
| Pneumatic connection | G1/4 |
| Materials in contact with the media | High-alloy stainless steel |
| Material of screwed trunnion | High-alloy stainless steel |
| Housing material | ABSHigh-alloy stainless steel |
| Inspection window material | PC |
| Housing colour | Silver |
| Product weight | 160 g |
| Information on operating and pilot media | No acetyleneNo oxygen |
