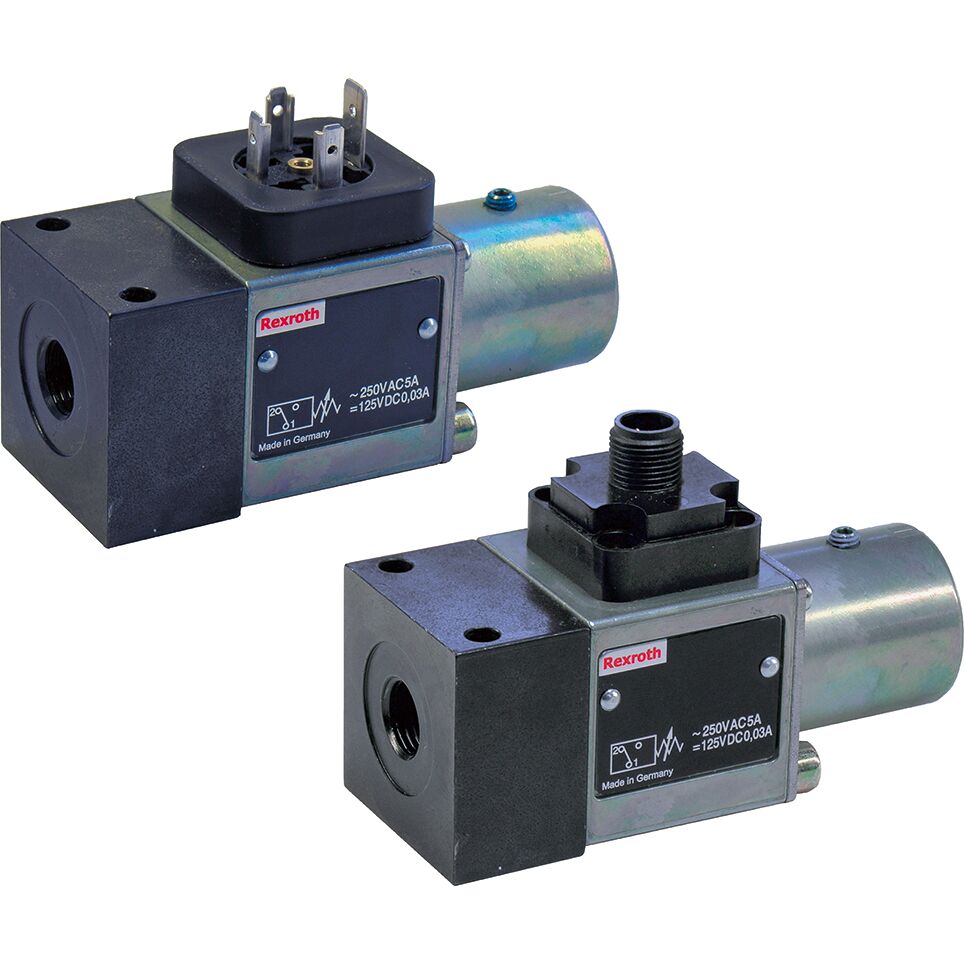

PRESSURE SWITCH HED 8 OH-2X/200K14

200 bar, micro switch with NC contact/NO contact function, device connector DIN EN 175301-803 (large cubic connector)

SKU: R901099808
ID:191128

Description

Potential-free switching of currents from 1 mA to 2.0 A. Small hysteresis, depending on the set switching point. High repetition accuracy 1% of the set pressure

  • Adjustment type: Spindle with internal hexagon
  • Piston type pressure switch
  • Micro switch with NC contact/NO contact function
  • Flange connection
  • Flange connection
  • With NBR seals

Document type Download link
Datasheets re50061_2017-08.pdf

Product attributes
Type of connection Flange connection
Max. pressure [bar] 200
Connection diagram Flange connection
Supply voltage 12 bis 250 V AC/DC
Electrical connector Connector 4-pole (3 + PE)
Electrical connection description Connector 4-pole (3 + PE) according to DIN EN 175301-803
Conformity description CE – according to Low-Voltage Directive 2014/35/EU
Conformity CE,CCC,UL,RoHS
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD
Seals NBR
Output signal Micro switch with NC contact/NO contact function
Weight [kg] 0.5553
