Programming unit

Description

Applications

Personal computer HART^®modem
Communicates with all registered HART^®field instruments
Operates with most PC-based HART^®communication-compliant software

Special features

Compact, rugged case
CE mark for sale in Europe
Integral HART^®cable with two test clip
Transformer isolation
Different connections depending on model: Bluetooth_®, USB and RS-232

Description

Overview
The VIATOR^® HART^® modem is a PC communication link to HART^® networks for commissioning, servicing, calibrating, or acquiring data from any HART^_® instrument or transmitter. The modem operates on low power, is isolated, and fully HART^®-compliant.

Software driver
The VIATOR^® modem software provides the link between the HART^® instrument and the personal computer. The software driver is included with every modem and can be downloaded from the manufacturer.

Designed for easy use

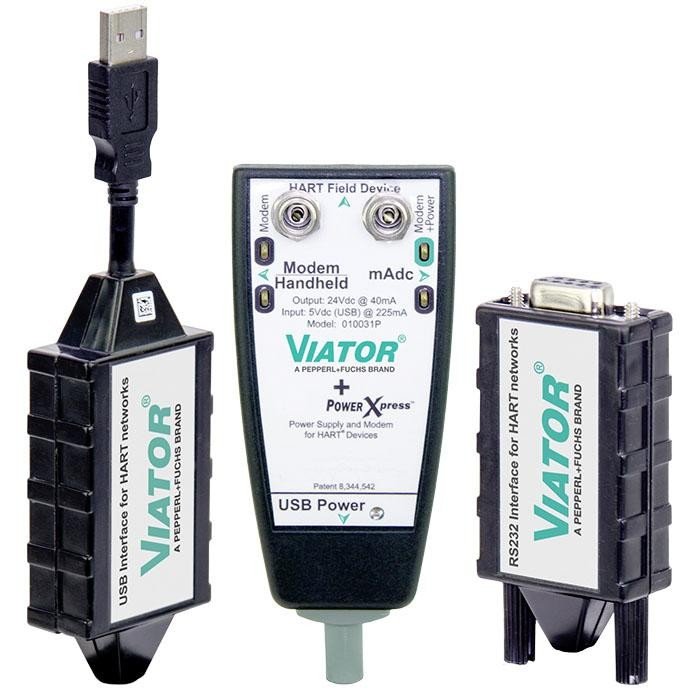

The modem is enclosed in a small, rugged ABS plastic case, suitable for the industrial environment. The modem connects to your computer depending on the version with a Bluetooth^® connection, a short integral cable terminating in a USB A connector or a RS-232 connector, and connects to a field instrument with an integral cable terminating in two test clips.

Compatibility
The modem is compatible with the following 32- and 64-bit Windows^® operating systems:

Windows® XP and Vista
Windows^® 7, 8 and 10
