GTIN: 4052568457884
8074074
| Nominal width | 2.2 mm |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Structural design | Directly controlled poppet valve |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Flow direction | Non-reversible |

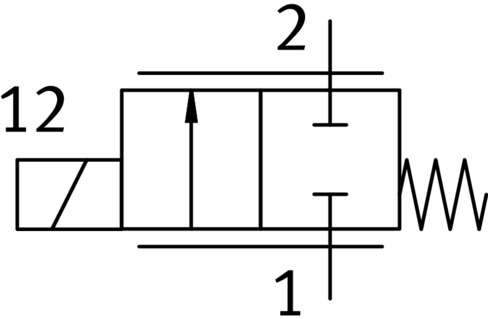

| Symbol | 00995954 |
| Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0 MPa … 0.3 MPa |
| Operating pressure | 0 bar … 3 bar |
| Nominal operating pressure | 0.3 MPa |
| Nominal operating pressure | 3 bar |
| Nominal operating pressure | 43.5 psi |
| Standard flow rate | 46 l/min … 56 l/min |
| Hysteresis | 16 mA |
| Max. switching frequency | 18 Hz |
| Current regulating range | 0 mA … 200 mA |
| Max. electrical power consumption | 2.5 W |
| Coil resistance | 60.5 Ohm |
| Duty cycle | 100% (see assembly instructions) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Medium | Inert gasAirOxygen |
| Information on medium | Operation with oil lubrication not possibleMaximum particle size 10 µm |
| Temperature of medium | 5 °C … 50 °C |
| Degree of protection | IP60 |
| Note on degree of protection | IP65 with suitable plugIn mounted state |
| Ambient temperature | 5 °C … 50 °C |
| Storage temperature | -40 °C … 80 °C |
| Product weight | 23 g |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 |
| Cable length | 0.07 m … 0.08 m |
| Type of mounting | On sub-basePlug-inWith accessories |
| Pneumatic connection 1 | Cartridge 15 mm |
| Pneumatic connection 2 | Cartridge 7.2 mm |
| Note on materials | RoHS-compliant |
| Seals material | FPM |
| Housing material | High-alloy steel |
