| Nominal width | 6 mm |
| Actuation type | Electrical |
| Sealing principle | Hard |
| Mounting position | AnyPreferably horizontal (display elements facing upwards); if the pneumatic valve is moved, it must be mounted at right angles to the direction of movement |
| Structural design | Piston gate valvewith integrated pressure sensors |
| Reset method | Magnetic spring |
| Safety instructions | VPWP safety position: the blocked mid-position is approached in case of a control interface malfunction. |
| Type of control | Direct |
| Flow direction | Non-reversible |

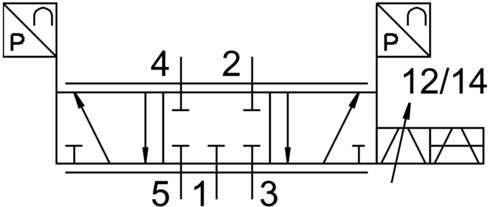

| Symbol | 00992136 |
| Valve function | 5/3 proportional directional control valve, closed |
| Status indications | LED yellow = PL (power load)LED green = powerLED red = error |
| Operating pressure | 0 MPa … 1 MPa |
| Operating pressure | 0 bar … 10 bar |
| Operating pressure for positioning/soft stop | 4 bar … 8 bar |
| Nominal operating pressure | 0.6 MPa |
| Nominal operating pressure | 6 bar |
| Nominal operating pressure | 87 psi |
| Standard nominal flow rate | 700 l/min |
| Nominal operating voltage DC | 24 V |
| DC operating voltage range | 18 V … 30 V |
| Load voltage range DC | 18 V … 30 V |
| Max. load current at voltage output | 500 mA |
| Max. load current of the digital output | 500 mA |
| Max. current consumption, valve drive | 1.2 A |
| Logic max. current consumption | 0.15 A |
| Nominal voltage DC | 24 V |
| Supply voltage of the digital output | 24 V load voltage |
| Supply voltage of the voltage output | 24 V load voltage |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU explosion protection directive (ATEX)As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMCacc. to UK EX instructionsTo UK RoHS instructions |
| Explosion prevention and protection | Zone 2 (ATEX) |
| ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T5 X Gc |
| Explosive ambient temperature | 0°C <= Ta <= +50°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | 0 °C … 50 °C |
| Degree of protection | IP65In mounted state |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 776 g |
| Pressure resolution | 0.01 bar |
| Linearity error FS | 1.5 % |
| Repetition accuracy FS | 1 % |
| Design of the 24 V voltage output | Reverse supply without destructionNo galvanic isolationShort circuit-proofReverse supply without destruction |
| Digital output design | as per IEC 61131-2Positive logic (PNP)No galvanic isolationShort circuit-proofReverse supply without destruction |
| Control interface | DigitalCAN bus with Festo protocolTerminating resistor integrated |
| Fieldbus interface electrical connection IN | PlugM95-pin |
| Fieldbus interface electrical connection OUT | SocketM95-pin |
| Fieldbus interface electrical connection | SocketM84-pin |
| Type of mounting | With through-holeWith accessories |
| Color of connections | Connection 2: blueConnection 4: black |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Housing material | Wrought aluminum alloyAnodized |
