| Nominal width pressurization | 7 mm |
| Exhaust nominal width | 7 mm |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Structural design | Pilot-controlled piston control valve |
| Safety instructions | MPPE-B safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |

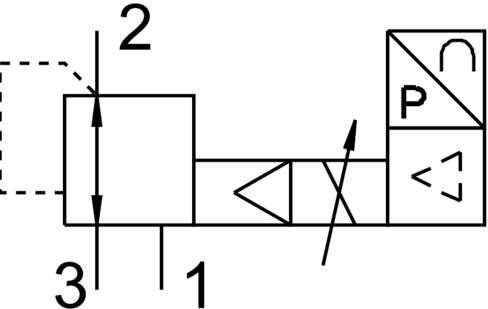

| Symbol | 00995304 |
| Operating pressure | 0 bar … 10 bar |
| Pressure regulation range | 0 bar … 10 bar |
| Inlet pressure 1 | 11 bar … 12 bar |
| Max. pressure hysteresis | 0.05 bar |
| Switching time off | 280 ms |
| On switching time | 160 ms |
| DC operating voltage range | 18 V … 30 V |
| Reference voltage | 10 V |
| Residual ripple | 10 % |
| Setpoint/actual values | Optionally:Voltage type 0 – 10 VCurrent type 4–20 mA |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | 0 °C … 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C … 50 °C |
| Product weight | 920 g |
| Electrical connection | 8-pinM16x0.75Plugas per DIN 45326Round design |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Pneumatic connection 3 | G1/4 |
| Note on materials | RoHS-compliant |
| Housing material | Wrought aluminum alloy |
| Diaphragm material | NBR |
