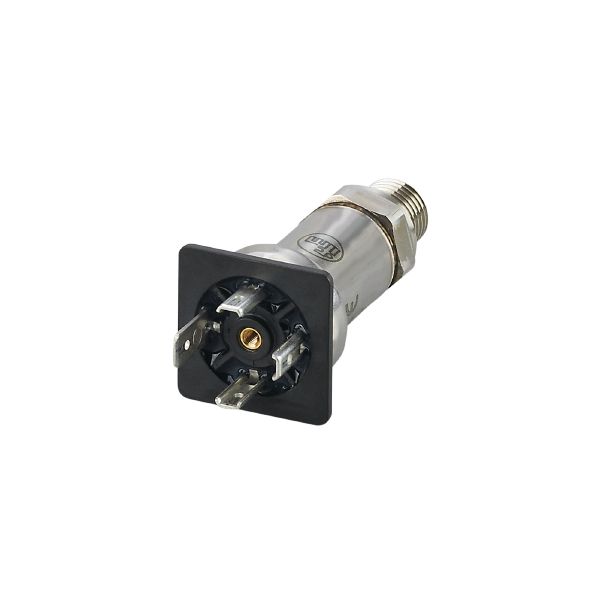

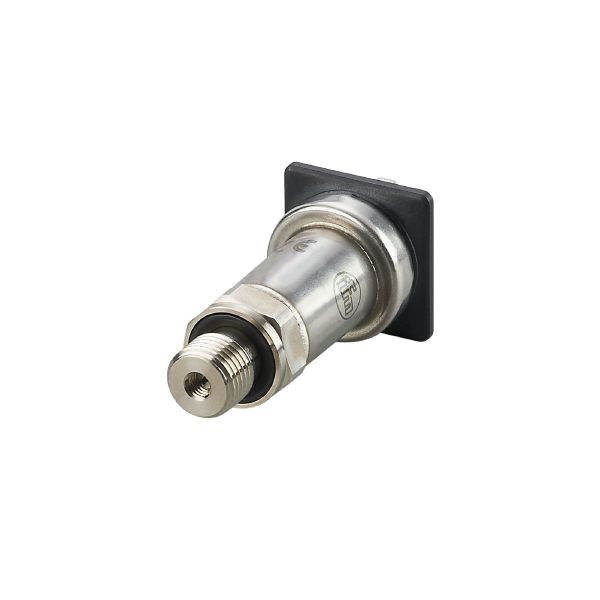

PT5015

Description

Product characteristics

Number of inputs and outputs

Number of analogue outputs: 1

Measuring range

0…6 bar

0…87 psi

0…600 kPa

0…0.6 MPa

Process connection

threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Application

Measuring element

metallic thin film cell

Application

for mobile applications; for industrial applications

Media

liquids and gases

Medium temperature [°C]

-40…125

Min. bursting pressure

200 bar

2900 psi

20 MPa

Pressure rating

15 bar

215 psi

1.5 Mpa

Note on pressure rating

static

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	8…36 DC
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4…20

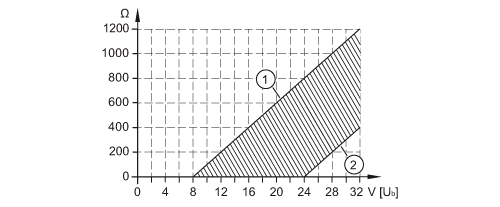

Max. load [Ω]	(Ub – 8 V) / 21,5 mA ; @8V= 0 Ω ; @12V max. 200 Ω: @24V max. 750 Ω
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range

0…6 bar

0…87 psi

0…600 kPa

0…0.6 MPa

Accuracy / deviations

Repeatability [% of the span]	< ± 0,05; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5; (incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]	< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]	< ± 0,2
Long-term stability [% of the span]	< ± 0,1; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,1 (0…80 °C); < ± 0,2 (-40…0 °C / 80…125 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,1 (0…80 °C); < ± 0,2 (-40…0 °C / 80…125 °C)

Response times

Step response time analogue output [ms]	2

Operating conditions

Ambient temperature [°C]	-40…100
Storage temperature [°C]	-40…100
Protection	IP 67

Tests / approvals

EMC

Compliant with ECE R 10, rev. 5	(E1 compliant)
DIN EN ISO 13766-1 : 2018	earthworks and construction machines
DIN EN ISO 14982 : 2009	agricultural and forestry machines
ISO 11452-2	100 V/m
ISO 7637-2 : 2011 pulse 1	Test severity III. function state C
ISO 7637-2 : 2011 pulse 2b	test severity IV. function state C
DIN EN 61326-1

Shock resistance

DIN EN 60068-2-27

500 g (1 ms)

Vibration resistance

DIN EN 60068-2-6

20 g (10…2000 Hz)

MTTF [years]

715

UL approval

UL Approval no.	J032
File number UL	E174189

Pressure Equipment Directive

Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Mechanical data

Weight [g]	67
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PPS
Materials (wetted parts)	1.4542 (17-4 PH / 630); stainless steel (1.4305 / 303)
Min. pressure cycles	60 million; (at 1.2 times nominal pressure)
Tightening torque [Nm]	25…35; (recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Process connection sealing	FKM (DIN EN ISO 1179-2)
Restrictor element integrated	yes
