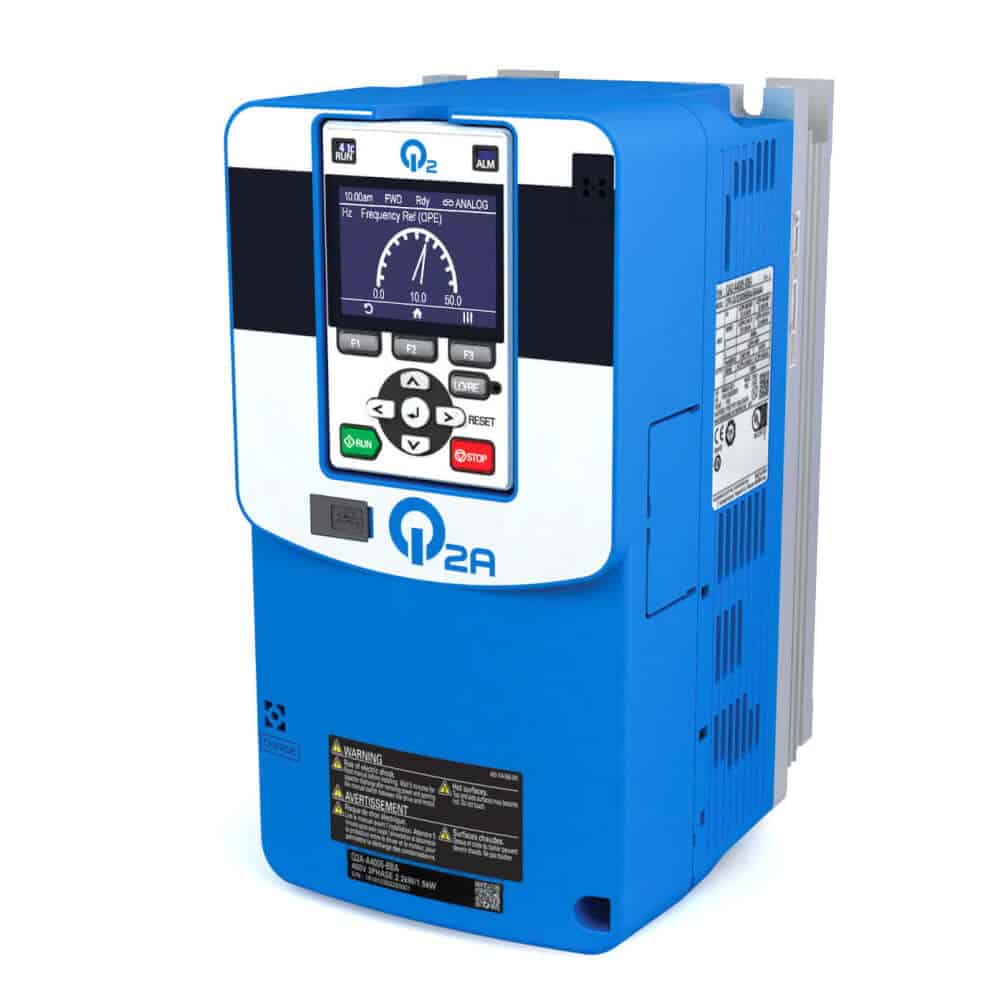

Inverter Q2A, 400 V, ND: 74.9 A / 37 kW, HD: 60 A / 30 kW, IP20, max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 30 kW |
| Max. motor output at variable torque (ND) | 37 kW |
| Built in EMC filter | ✔️ |
| Degree of protection (IP) | IP20 |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 400 mm |
| Product Width (unpacked) | 240 mm |
| Product Depth (unpacked) | 280 mm |
| Product Weight (unpacked) | 16000 g |
| AX-FER5045-PE | Ferrite choke, 50mm diameter, for 45kW inverters and below |
|
|
| AX-RAI00290780-DE | AC input reactor, 78 A, 0.29 mH, for 30 to 37 kW sizes, 400 VAC, 3 phase |
|
|
| JVOP-KPLCA04AEZ | Q2 LCD Keypad (w/o Bluetooth) |
|
|
 |
PG-B3 | Open collector PG interface for A1000 and Q2A inverters. A, B, Z pulse, fmax 50 kHz |
|
 |
PG-F3 | Endat PG interface for A1000 and Q2A inverters. For speed feedback input by connection a motor encoder type: EnDat 2.1/01, EnDat 2.2/01, EnDat 2.2/22 (HEIDENHAIN) |
|
| PG-RT3 | Resolver PG interface card A1000 and Q2A inverters. TS2640N321E64 |
|
|
 |
PG-X3 | Line Driver PG interface for A1000 and Q2A inverters. A, B, Z differential (RS422) input, fmax 300 kHz |
|
 |
Q2-FIA4080-SE | Q2A Book end style RFI filter, 80 A, 3~ 400 VAC, for Q2A-A4044/Q2A-A4060/Q2A-A4075/Q2A-A2042/Q2A-A2056/Q2A-A2070/Q2V-A4044/Q2V-A4060 models. |
|
| SI-EL3 | POWERLINK option board for A1000, Q2A and Q2V. |
|
|
| SI-EN3 | EtherNet/IP option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-EN3D | Dual Port EtherNet IP option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-EP3 | PROFINET option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-ES3 | EtherCAT option board for A1000, Q2A and Q2V inverters. |
|
|
 |
SI-N3 | DeviceNet option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-P3 | PROFIBUS DP option board for A1000, Q2A and Q2V inverters. |
|
| SI-S3 | CANopen option board for A1000, Q2A and Q2V inverters. |
|
