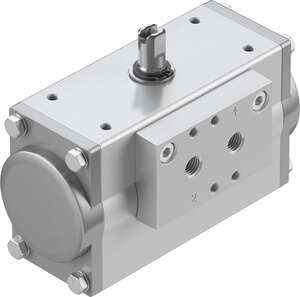

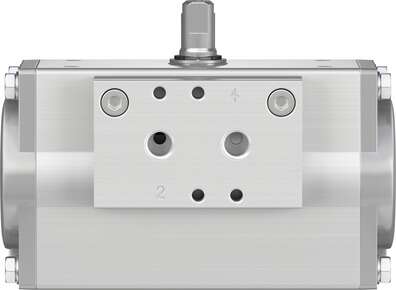

| Size of valve actuator | 10 |
| Flange hole pattern | F03F04 |
| Swivel angle | 90 deg … 180 deg |
| End-position adjusting range at 0° | -5 deg … 5 deg |
| End-position adjusting range at nominal swivel angle | -5 deg … 5 deg |
| Depth shaft connection | 10 mm |
| Standard connection for valve | ISO 5211 |
| Mounting position | Any |
| Mode of operation | Double-actingSingle-acting |
| Structural design | Gear rack/pinion |
| Closing direction | Clockwise closingCloses to the left |

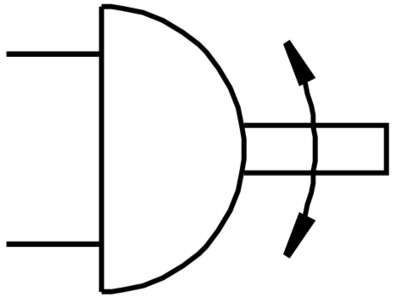

| Symbol | 0099126500991266 |
| Valve connection conforms to standard | VDI/VDE 3845 (NAMUR) |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Safety integrity level (SIL) | Up to SIL 2 high demand mode |
| Operating pressure | 2 bar … 8 bar |
| Nominal operating pressure | 2 bar … 6 bar |
| Maritime classification | See certificate |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX) |
| Certificate issuing authority | DNVGL TAP00001CEGerman Technical Control Board (TÜV) Rheinland 968/V 1106.00/19 |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T3 Gb XEx h IIC T4 Gb XEx h IIC T6 Gb X |
| Type of (ignition) protection for dust | Ex h IIIC T105°C Db XEx h IIIC T175°C Db XEx h IIIC T85°C Db X |
| Explosive ambient temperature | -20°C <= Ta <= +80°C-50°C <= Ta <= +60°C0°C <= Ta <= +150°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Storage temperature | -20 °C … 60 °C |
| Ambient temperature | -50 °C … 150 °C |
| Torque at nominal operating pressure and 0° swivel angle | 10.3 Nm |
| Torque at nominal operating pressure and 90° swivel angle | 10.3 Nm |
| Note about the torque | The actuator’s operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling. |
| Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° | 1 l |
| Product weight | 965 g … 970 g |
| Shaft connection | T9 |
| Pneumatic connection | G1/81/8 NPT |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Material of sub-base | Wrought aluminum alloy, anodized |
| Cover material | Die-cast aluminum, coated |
| Seals material | FPMFVMQNBR |
| Material of spring | Spring steel |
| Housing material | Wrought aluminum alloy, anodized |
| Material of piston | Die-cast aluminum |
| Material of bearing | POMPPS-reinforced |
| Cam material | Cast stainless steelSteelHigh-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Shaft material | Steel, nickel-platedHigh-alloy stainless steel |
