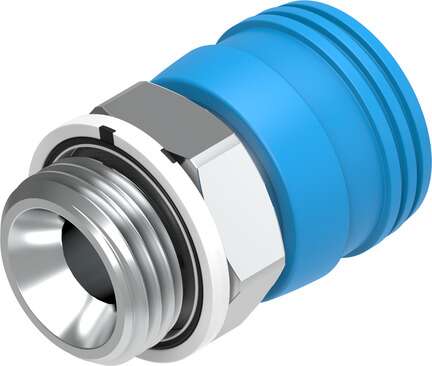

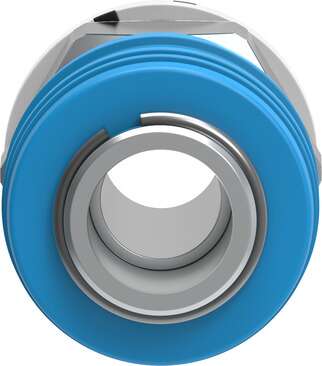

Quick coupling socket

GTIN: 4052568017965

2145

SKU: KD4-1/2-A

Description

Nominal width 10 mm
Operating pressure for entire temperature range -0.95 bar … 12 bar
Standard nominal flow rate 1301 l/min
Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media Operation with oil lubrication possible
Corrosion resistance class (CRC) 1 – Low corrosion stress
Ambient temperature -10 °C … 60 °C
Nominal tightening torque 32.5 Nm
Tolerance for nominal tightening torque ± 20%
Product weight 78 g
Pneumatic connection 1 External thread G1/2
Note on materials RoHS-compliant
