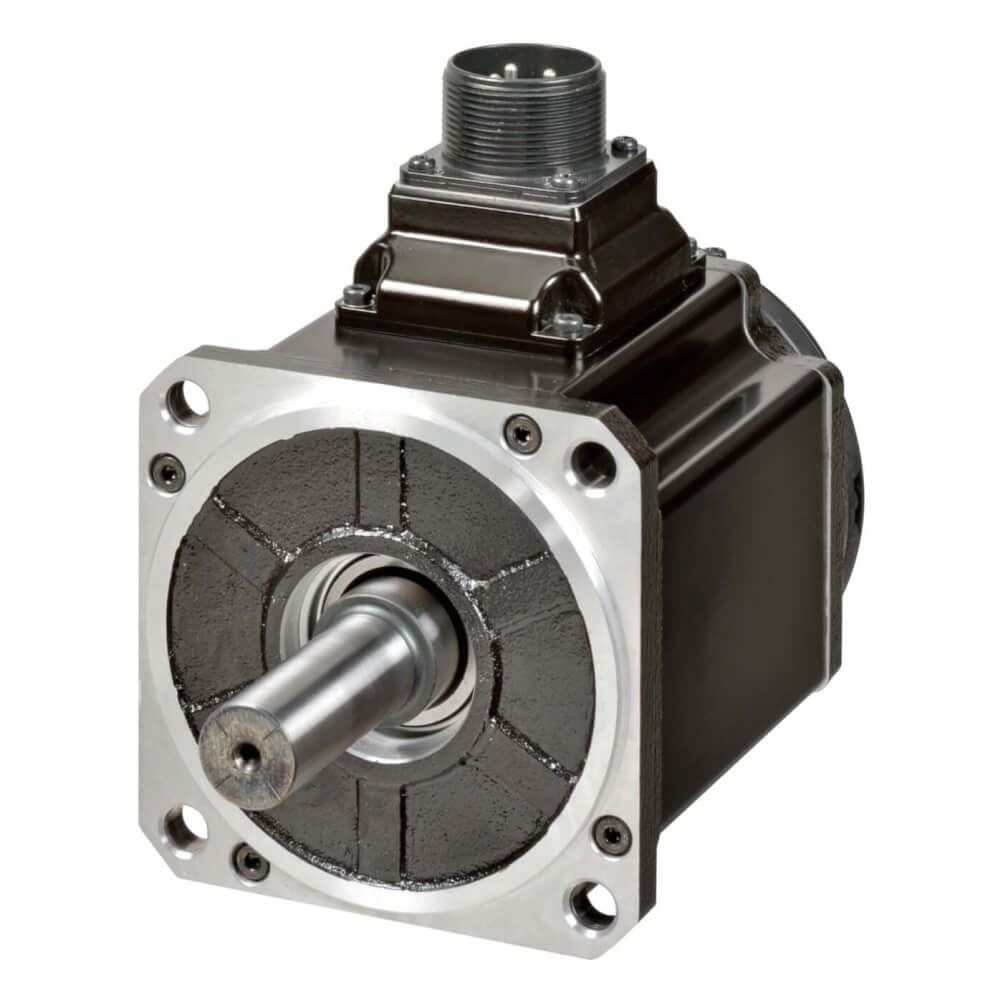

1S AC servo motor, 1.5 kW, 230 VAC, 3000 rpm, 4.77 Nm, absolute encoder, with brake
| Servo control method | EtherCAT |
| Drive supply voltage | 230 V single phase |
| Rated output | 1.5 kW |
| Rated speed | 3000 r/min |
| Rated torque | 4.77 Nm |
| Peak torque | 14.3 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Motor with brake | ✔ |
| Motor with oil seal | ❌ |
| Flange size square (LC) | 100 mm |
| Shaft diameter | 19 mm |
| Shaft with key | ✔ |
| Shaft with tap | ✔ |
| Product Weight (unpacked) | 7400 g |
 |
R88A-CA1C005BF-E | 1S series servo motor power cable, 5 m, with brake, 230 V: 900 W to 1.5 kW |
|
|
R88A-CA1C010BF-E | 1S series servo motor power cable, 10 m, with brake, 230 V: 900 W to 1.5 kW |
|
|
R88A-CA1C015BF-E | 1S series servo motor power cable, 15 m, with brake, 230 V: 900 W to 1.5 kW |
|
 |
R88A-CR1B001-5NF-E | 1S series servo encoder cable, 1.5m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B003NF-E | 1S series servo encoder cable, 3m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B005NF-E | 1S series servo encoder cable, 5m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B010NF-E | 1S series servo encoder cable, 10m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B015NF-E | 1S series servo encoder cable, 15m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B020NF-E | 1S series servo encoder cable, 20m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
 |
R88A-SC021S-E | 1S series cable clamp B. Used in 400 V drives and 230 V (from 1.5 kW to 3 kW) |
|
Datasheet
EN PDF
