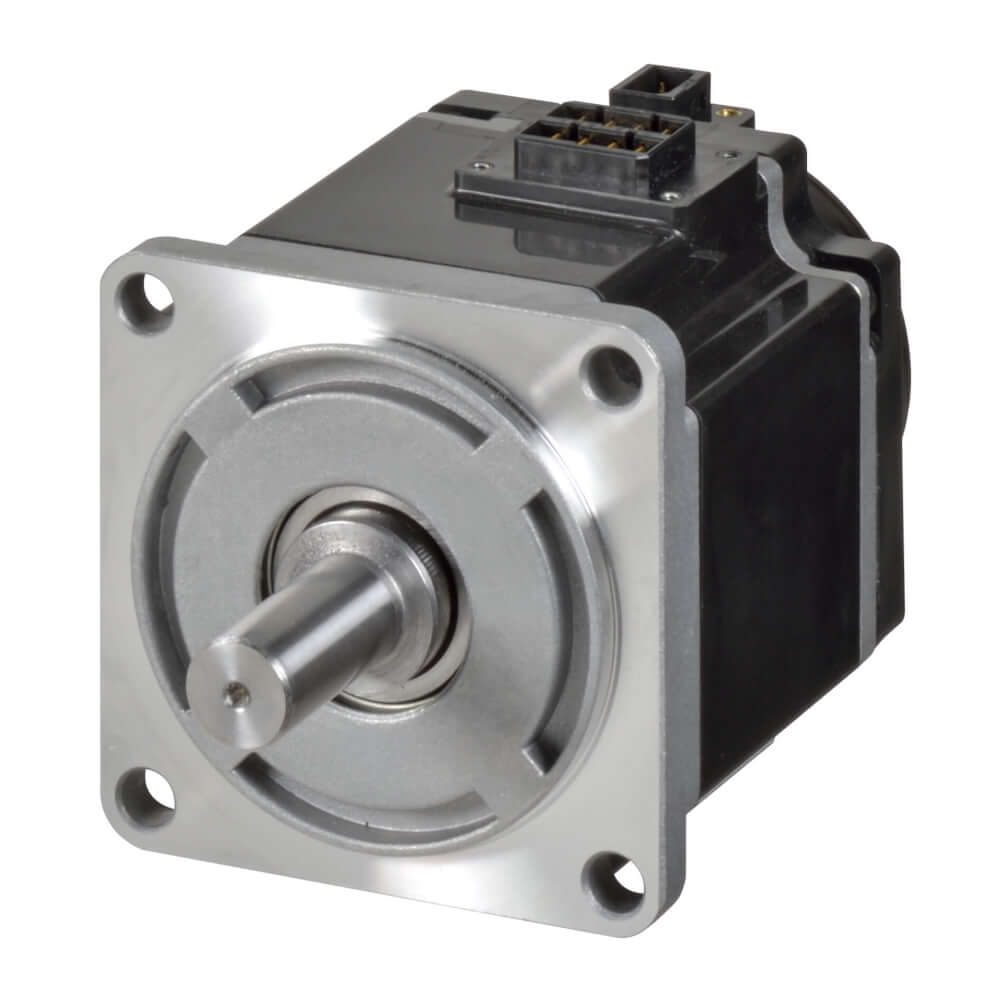

1S AC servo motor, 200 W, 230 VAC, 3000 rpm, 0.637 Nm, incremental encoder
| Servo control method | EtherCAT |
| Drive supply voltage | 230 V single phase |
| Rated output | 0.2 kW |
| Rated speed | 3000 r/min |
| Rated torque | 0.637 Nm |
| Peak torque | 2.2 Nm |
| Encoder type | Incremental |
| Encoder resolution | 23 Bit |
| Motor with brake | ❌ |
| Motor with oil seal | ❌ |
| Flange size square (LC) | 60 mm |
| Shaft diameter | 11 mm |
| Shaft with key | ✔ |
| Shaft with tap | ✔ |
| Product Weight (unpacked) | 870 g |
 |
R88A-CA1A001-5SF-E | 1S series servo motor power cable, 1.5 m, 230 V: 100 to 750 W |
|
|
R88A-CA1A003SF-E | 1S series servo motor power cable, 3 m, 230 V: 100 to 750 W |
|
|
R88A-CA1A005SF-E | 1S series servo motor power cable, 5 m, 230 V: 100 to 750 W |
|
|
R88A-CA1A010SF-E | 1S series servo motor power cable, 10 m, 230 V: 100 to 750 W |
|
|
R88A-CA1A015SF-E | 1S series servo motor power cable, 15 m, 230 V: 100 to 750 W |
|
|
R88A-CA1A020SF-E | 1S series servo motor power cable, 20 m, 230 V: 100 to 750 W |
|
 |
R88A-CR1A001-5CF-E | 1S series servo encoder cable, 1.5m, 230V: 50-750W |
|
|
R88A-CR1A003CF-E | 1S series servo encoder cable, 3m, 230V: 50-750W |
|
|
R88A-CR1A005CF-E | 1S series servo encoder cable, 5m, 230V: 50-750W |
|
|
R88A-CR1A010CF-E | 1S series servo encoder cable, 10m, 230V: 50-750W |
|
|
R88A-CR1A015CF-E | 1S series servo encoder cable, 15m, 230V: 50-750W |
|
|
R88A-CR1A020CF-E | 1S series servo encoder cable, 20m, 230V: 50-750W |
|
 |
R88A-SC011S-E | 1S series cable clamp A. Used in 230 V drives up to 750 W |
|
