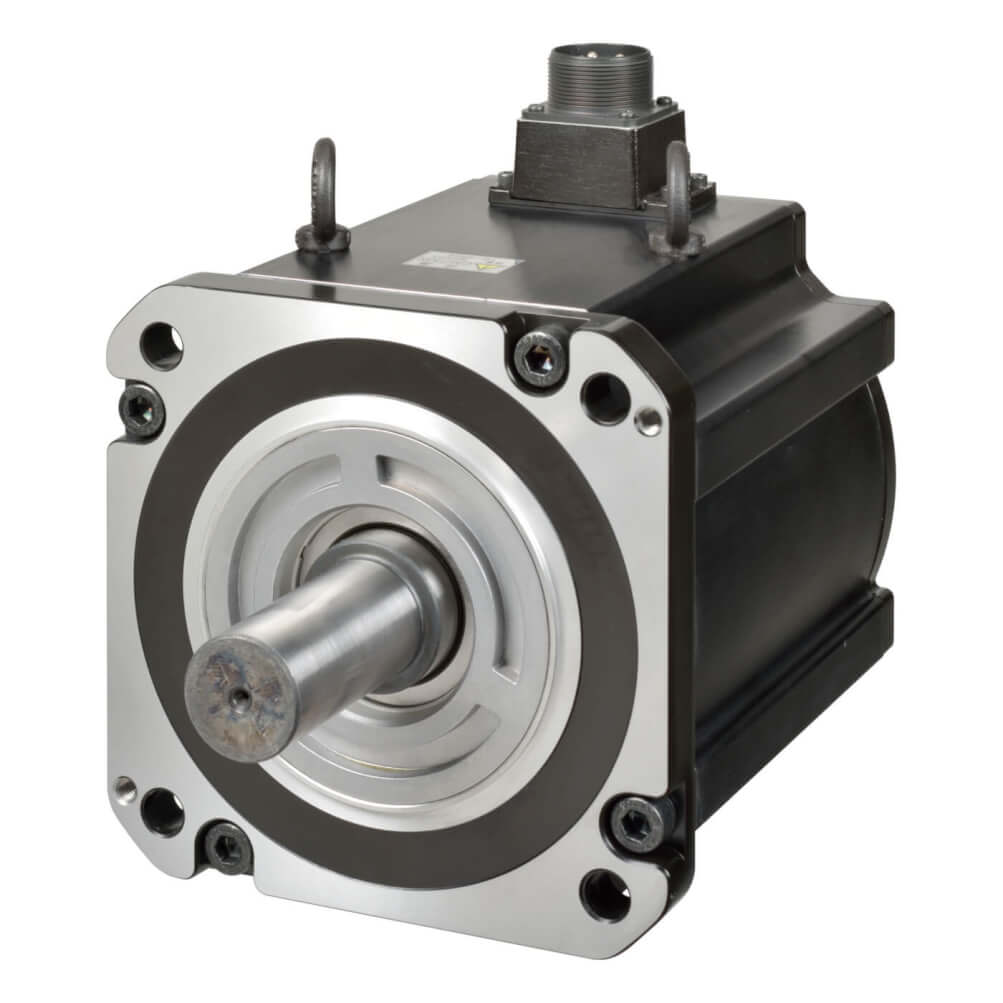

1S AC servo motor, 7.5 kW, 400 VAC, 1500 rpm, 47.8 Nm, absolute encoder, with brake
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated output | 7.5 kW |
| Rated speed | 1500 r/min |
| Rated torque | 47.8 Nm |
| Peak torque | 119 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Motor with brake | ✔ |
| Motor with oil seal | ❌ |
| Flange size square (LC) | 180 mm |
| Shaft diameter | 42 mm |
| Shaft with key | ✔ |
| Shaft with tap | ✔ |
| Product Weight (unpacked) | 45000 g |
 |
R88A-CA1H005SF | 1S series servo motor power cable, 5 m, non braked, 400 V: 7.5 kW |
|
|
R88A-CA1H010SF | 1S series servo motor power cable, 10 m, non braked, 400 V: 7.5 kW |
|
|
R88A-CA1H015SF | 1S series servo motor power cable, 15 m, non braked, 400 V: 7.5 kW |
|
 |
R88A-CR1B001-5NF-E | 1S series servo encoder cable, 1.5m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B003NF-E | 1S series servo encoder cable, 3m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B005NF-E | 1S series servo encoder cable, 5m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B010NF-E | 1S series servo encoder cable, 10m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B015NF-E | 1S series servo encoder cable, 15m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B020NF-E | 1S series servo encoder cable, 20m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
