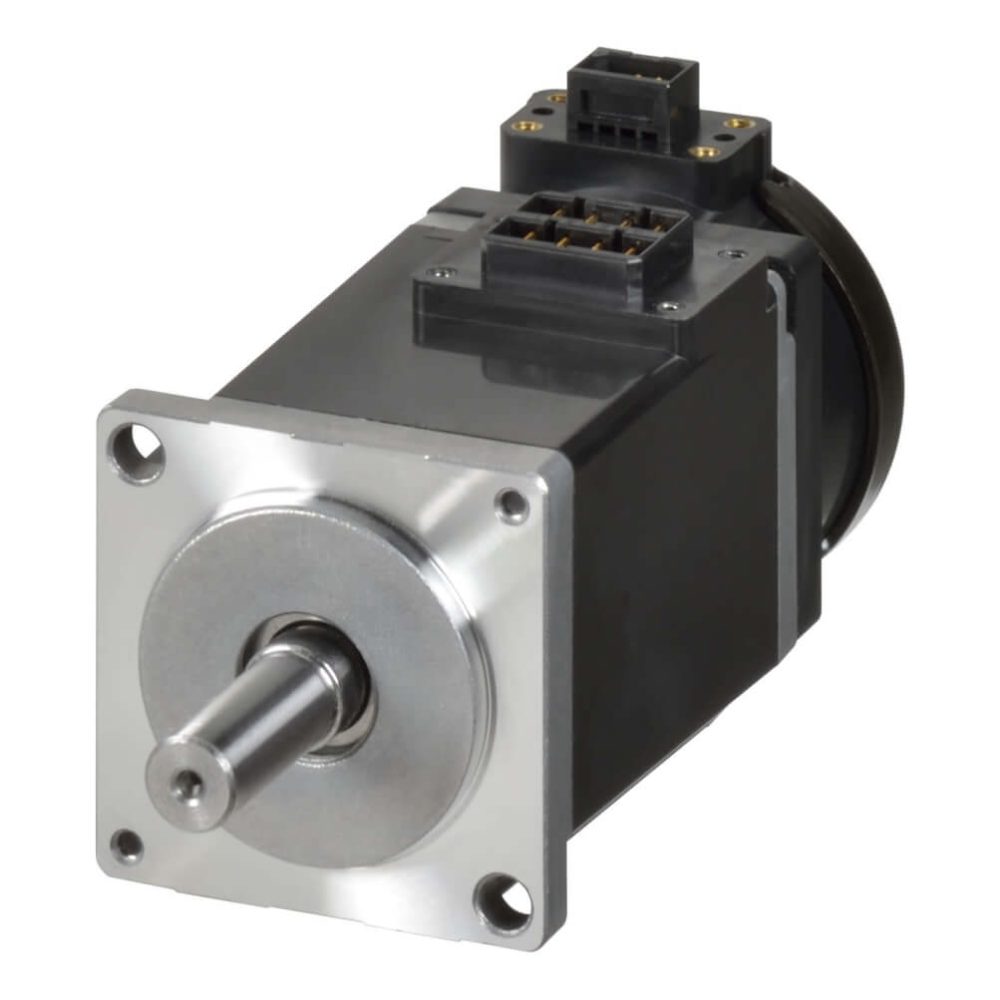

1S AC servo motor, 900 W, 400 VAC, 1000 rpm, 8.59 Nm, absolute encoder
| Servo control method | EtherCAT |
| Drive supply voltage | 400 V three phase |
| Rated output | 0.9 kW |
| Rated speed | 1000 r/min |
| Rated torque | 8.59 Nm |
| Peak torque | 19.3 Nm |
| Encoder type | Absolute without battery |
| Encoder resolution | 23 Bit |
| Motor with brake | ❌ |
| Motor with oil seal | ❌ |
| Flange size square (LC) | 130 mm |
| Shaft diameter | 22 mm |
| Shaft with key | ✔ |
| Shaft with tap | ✔ |
| Product Weight (unpacked) | 8500 g |
 |
R88A-CA1C003SF-E | 1S series servo motor power cable, 3 m, non braked, 230 V: 900 W to 1.5 kW, 400 V: 400 W to 1.5 k W & 2 k W (2000 & 3000 rpm) |
|
|
R88A-CA1C005SF-E | 1S series servo motor power cable, 5 m, non braked, 230 V: 900 W to 1.5 kW, 400 V: 400 W to 1.5 k W & 2 k W (2000 & 3000 rpm) |
|
|
R88A-CA1C010SF-E | 1S series servo motor power cable, 10 m, non braked, 230 V: 900 W to 1.5 kW, 400 V: 400 W to 1.5 k W & 2 k W (2000 & 3000 rpm) |
|
|
R88A-CA1C015SF-E | 1S series servo motor power cable, 15 m, non braked, 230 V: 900 W to 1.5 kW, 400 V: 400 W to 1.5 k W & 2 k W (2000 & 3000 rpm) |
|
|
R88A-CA1C020SF-E | 1S series servo motor power cable, 20 m, non braked, 230 V: 900 W to 1.5 kW, 400 V: 400 W to 1.5 k W & 2 k W (2000 & 3000 rpm) |
|
 |
R88A-CR1B001-5NF-E | 1S series servo encoder cable, 1.5m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B003NF-E | 1S series servo encoder cable, 3m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B005NF-E | 1S series servo encoder cable, 5m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B010NF-E | 1S series servo encoder cable, 10m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B015NF-E | 1S series servo encoder cable, 15m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
|
R88A-CR1B020NF-E | 1S series servo encoder cable, 20m, 230V: 900W-1.5kW, 400V: 400W-15kW |
|
 |
R88A-SC021S-E | 1S series cable clamp B. Used in 400 V drives and 230 V (from 1.5 kW to 3 kW) |
|
