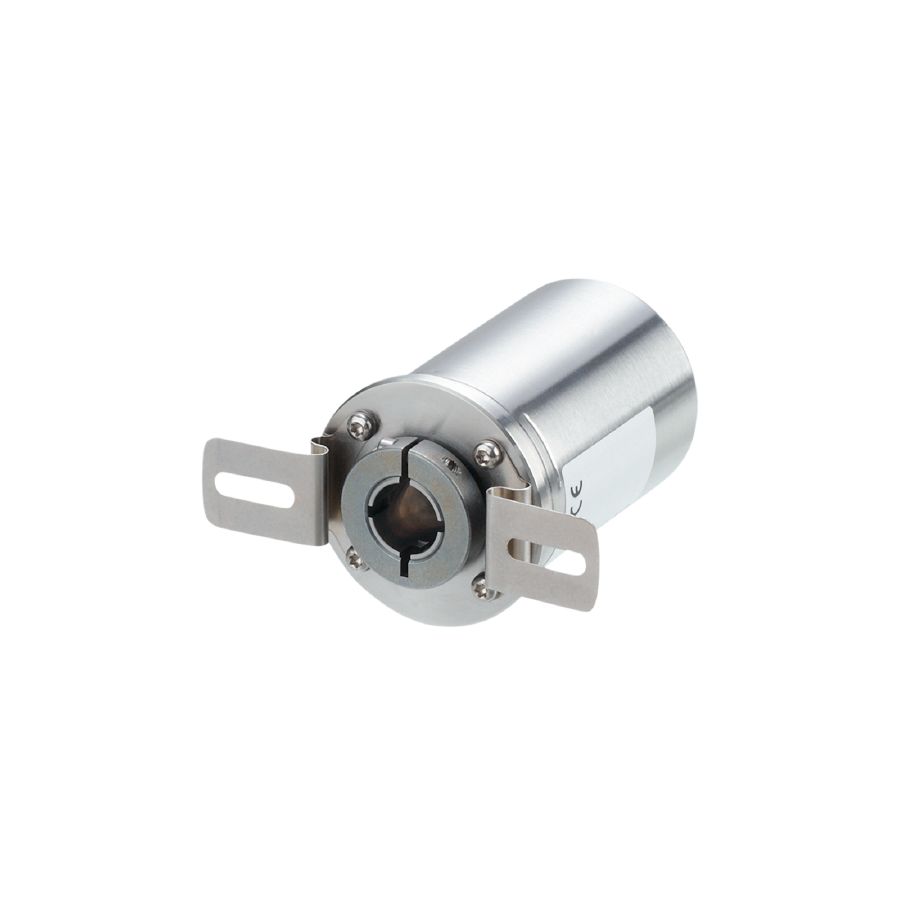

| Resolution | 1…10000; (parameterisable; Factory setting: 1024) resolution |
|---|---|
| Communication interface | IO-Link |
| Shaft design | hollow shaft open to one side |
| Shaft diameter [mm] | 12 |
| Function principle | incremental |
|---|---|
| Revolution type | incremental /singleturn |
| Detection system | magnetic |
| Operating voltage [V] | 4.75…30 DC |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 500 |
| Max. revolution electrical [U/min] | 6000 |
| Electrical design | HTL/TTL | |
|---|---|---|
| Switching frequency [kHz] | 1000 | |
| Factory setting |
|
|
| Short-circuit protection | yes | |

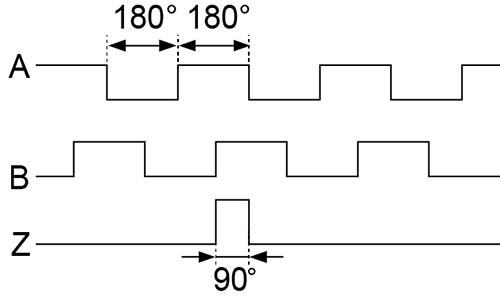

| Phase difference A and B [°] | 90 |
| Resolution | 1…10000; (parameterisable; Factory setting: 1024) resolution |
|---|
| Accuracy [°] | 0.1 |
|---|
| Parameter setting options | Resolution; direction of rotation; HTL; TTL |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SIO mode | yes |
| Min. process cycle time [ms] | 2.3 |
| Ambient temperature [°C] | -40…85 |
|---|---|
| Storage temperature [°C] | -40…85 |
| Max. relative air humidity [%] | 95; (condensation not permissible) |
| Protection | IP 68; IP 69K |
| Vibration resistance |
|
||
|---|---|---|---|
| Shock resistance |
|
||
| Continuous shock resistance |
|
||
| Vibration resistance |
|
||
| MTTF [years] | 292 |
| Weight [g] | 372.9 | |
|---|---|---|
| Dimensions [mm] | Ø 42 / L = 79.5 | |
| Materials | flange: stainless steel (1.4404 / 316L); housing: stainless steel (1.4404 / 316L) | |
| Tightening torque [Nm] | < 0.7; (Mounting screw) | |
| Max. revolution, mechanical [U/min] | 6000 | |
| Max. starting torque [Nm] | 5 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | hollow shaft open to one side | |
| Shaft diameter [mm] | 12 | |
| Shaft material |
|
|

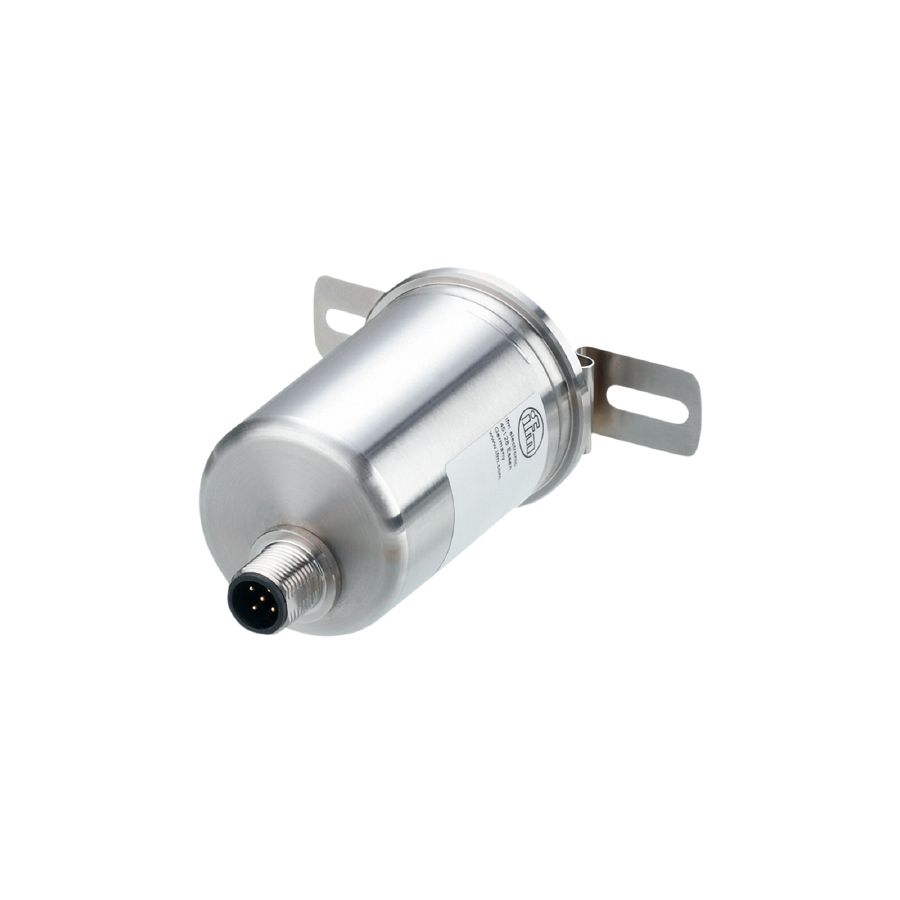

| Installation depth of shaft [mm] | 22 | |
| Max. axial shaft misalignment [mm] | 0,5 |
| IO-Link | Connector: 1 x M12, axial; coding: A; Moulded body: stainless steel (316 / 1.4401) |
|---|
|
|
|
|---|
