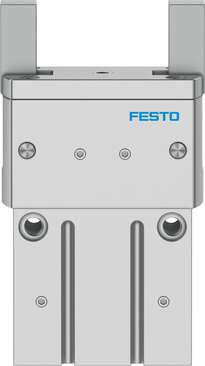

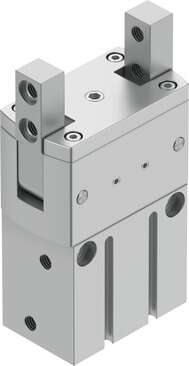

Radial gripper

GTIN: 4052568211066

563906

SKU: HGRT-20-A

Description

Size 20
Max. interchangeability 0.2 mm
Max. gripper jaw angular play ax, ay 0.1 deg
Max. opening angle 180 deg
Rotational symmetry 0.2 mm
Pneumatic gripper repetition accuracy 0.02 mm
Number of gripper jaws 2
Mounting position Any
Mode of operation Double-acting
Gripper function Radial
Structural design Positively driven motion sequence
Position sensing For proximity sensorFor inductive proximity sensors

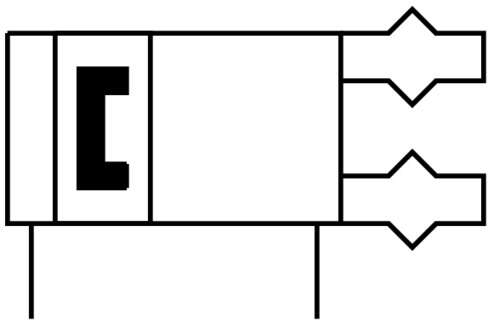

Symbol 00991894
Operating pressure 3 bar … 8 bar
Max. operating frequency of pneumatic gripper 3 Hz
Min. opening time at 6 bar 280 ms
Min. closing time at 6 bar 308 ms
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 1 – Low corrosion stress
Ambient temperature 5 °C … 60 °C
Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening 588 Ncm
Total gripping torque at 6 bar, closing 516 Ncm
Mass moment of inertia 0.74 kgcm²
Maximum force on gripper jaw Fz, static 100 N
Maximum torque on gripper jaw, My static 6.2 Nm
Maximum torque on gripper jaw, Mz static 0.5 Nm
Relubrication interval for guidance elements 10 MioCyc
Product weight 290 g
Type of mounting With internal thread and centering sleeve
Pneumatic connection M5
Note on materials RoHS-compliant
Housing material AluminumSmooth anodized
Gripper jaw material SteelHardened
