| Size | 25 |
| Max. interchangeability | 0.2 mm |
| Max. gripper jaw angular play ax, ay | 0.1 deg |
| Max. opening angle | 180 deg |
| Rotational symmetry | 0.2 mm |
| Pneumatic gripper repetition accuracy | 0.02 mm |
| Number of gripper jaws | 2 |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Radial |
| Structural design | Positively driven motion sequence |
| Position sensing | For proximity sensorFor inductive proximity sensors |

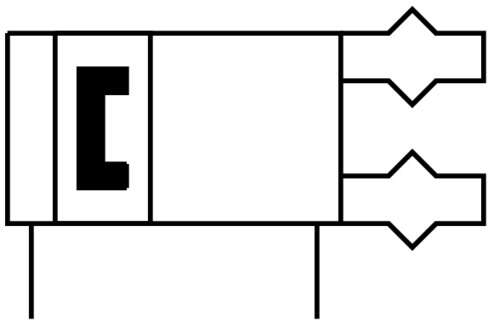

| Symbol | 00991894 |
| Operating pressure | 3 bar … 8 bar |
| Max. operating frequency of pneumatic gripper | 3 Hz |
| Min. opening time at 6 bar | 309 ms |
| Min. closing time at 6 bar | 343 ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Ambient temperature | 5 °C … 60 °C |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 1348 Ncm |
| Total gripping torque at 6 bar, closing | 1208 Ncm |
| Mass moment of inertia | 2.1 kgcm² |
| Maximum force on gripper jaw Fz, static | 180 N |
| Maximum torque on gripper jaw, My static | 10 Nm |
| Maximum torque on gripper jaw, Mz static | 1 Nm |
| Relubrication interval for guidance elements | 10 MioCyc |
| Product weight | 540 g |
| Type of mounting | With internal thread and centering sleeve |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Housing material | AluminumSmooth anodized |
| Gripper jaw material | SteelHardened |
