| Width | 10.5 mm |
| Mounting position | Any |
| Pneumatic vertical stacking | Pressure regulator for 2 |
| Controller function | Outlet pressure constantWith secondary exhausting |

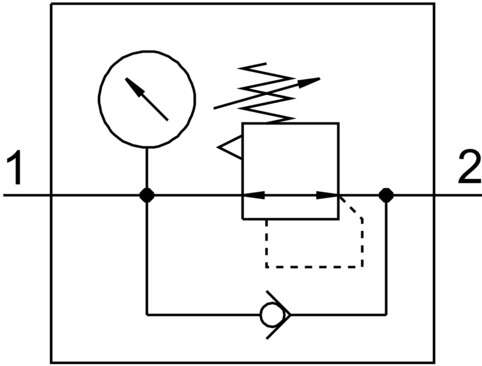

| Symbol | 00992003 |
| Pressure regulation range | 2 bar … 6 bar |
| Inlet pressure 1 | 0.5 bar … 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65as per IEC 60529 |
| Ambient temperature | -5 °C … 50 °C |
| Max. tightening torque | 0.25 Nm |
| Product weight | 73.8 g |
| Vertical stacking mounting type | On manifold sub-base |
| Pressure gauge connection | M5 |
| Note on materials | RoHS-compliant |
| Material of operator panel | PA |
| Seals material | NBR |
| Controller housing material | PA |
