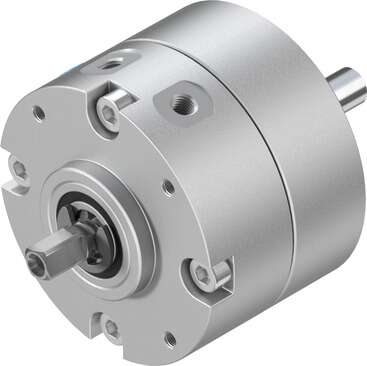

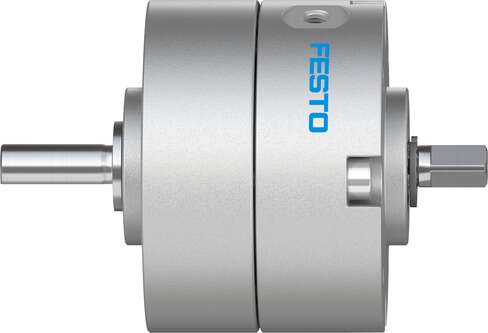

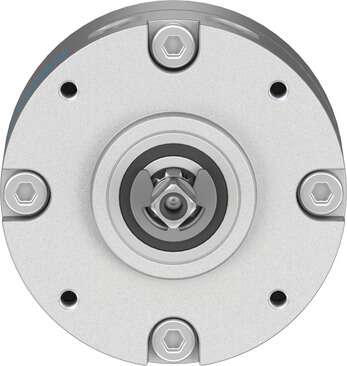

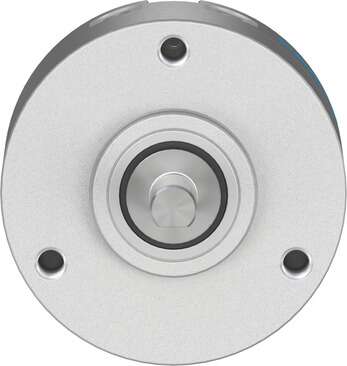

| Size | 6 |
| Cushioning angle | 0.5 deg |
| Swivel angle | 0 deg … 180 deg |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Structural design | Rotary vane |
| Position sensing | For proximity sensor |

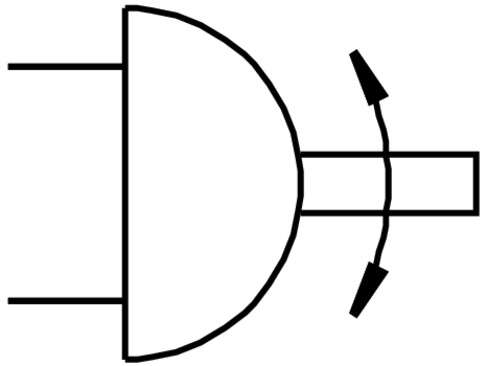

| Symbol | 00991265 |
| Variants | Spigot shaft |
| Operating pressure | 0.35 MPa … 0.8 MPa |
| Operating pressure | 3.5 bar … 8 bar |
| Max. swivel frequency at 6 bar | 3 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | 0 °C … 60 °C |
| Max. axial force | 10 N |
| Max. radial force | 15 N |
| Theoretical torque at 6 bar | 0.15 Nm |
| Permissible mass moment of inertia | 0.001 kgm² |
| Product weight | 38 g |
| Type of mounting | With internal thread |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized |
