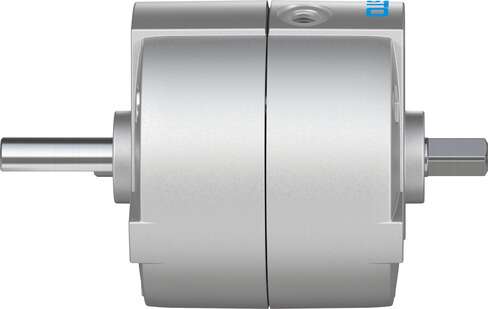

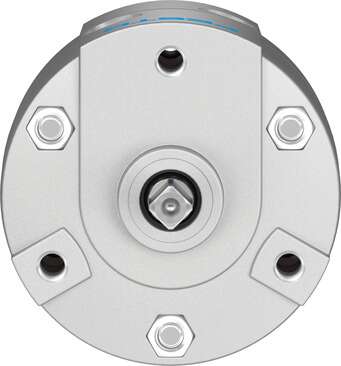

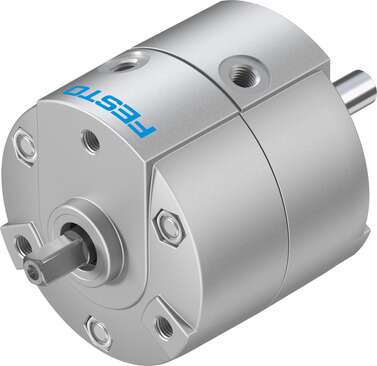

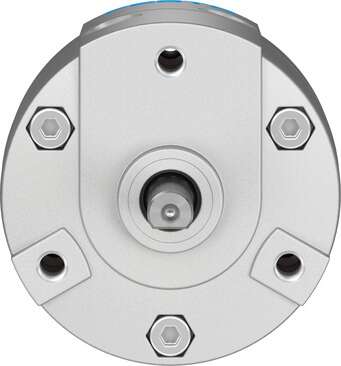

| Size | 12 |
| Cushioning angle | 0.5 deg |
| Swivel angle | 0 deg … 180 deg |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Structural design | Rotary vane |
| Position sensing | For proximity sensor |

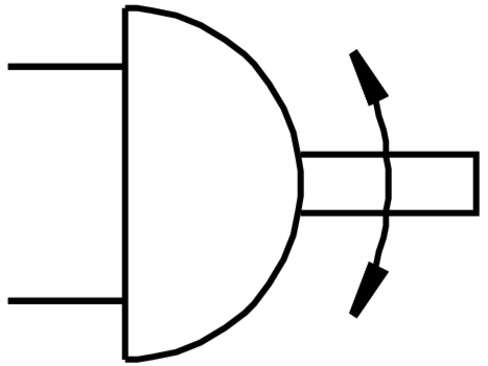

| Symbol | 00991265 |
| Variants | Spigot shaft |
| Operating pressure | 0.25 MPa … 0.8 MPa |
| Operating pressure | 2.5 bar … 8 bar |
| Max. swivel frequency at 6 bar | 3 Hz |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb X |
| Type of (ignition) protection for dust | Ex h IIIC T120°C Db X |
| Explosive ambient temperature | 0°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0 °C … 60 °C |
| Max. axial force | 20 N |
| Max. radial force | 25 N |
| Theoretical torque at 6 bar | 1 Nm |
| Permissible mass moment of inertia | 0.005 kgm² |
| Product weight | 152 g |
| Type of mounting | With internal thread |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) |
| Housing material | Die cast aluminum, painted |
