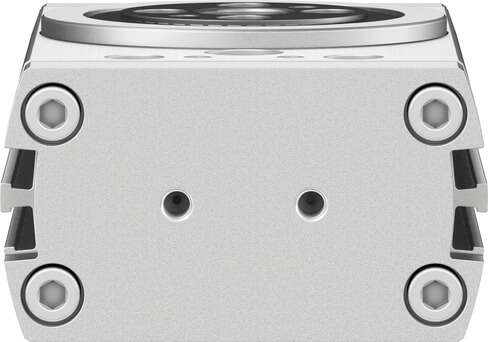

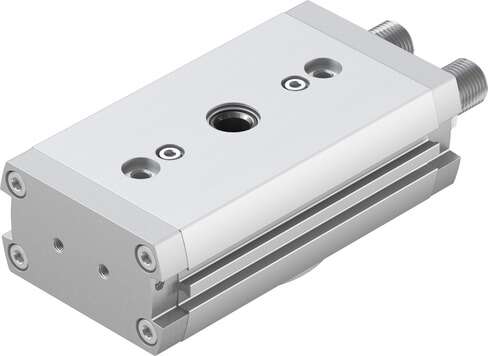

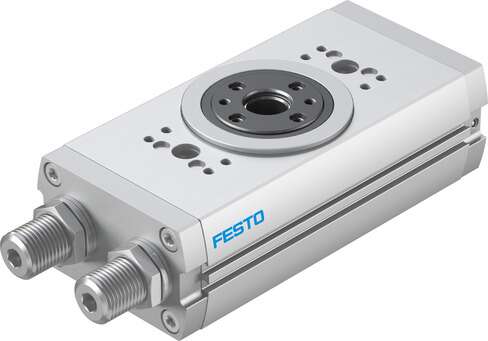

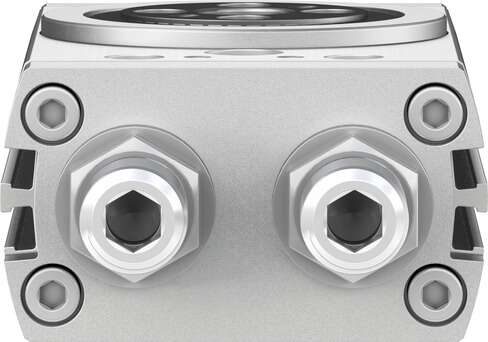

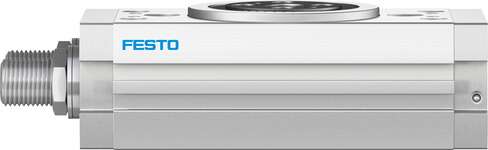

| Size | 25 |
| Swivel angle | 180 deg |
| Cushioning | Elastic cushioning rings/pads at both ends Internal hydraulic cushioning, hard External hydraulic cushioning Internal hydraulic cushioning, soft Internal hydraulic cushioning normal |
| Mounting position | Any |
| Structural design | Gear rack/pinion |
| Max. number of intermediate positions | 1 |
| Position sensing | For proximity sensor |

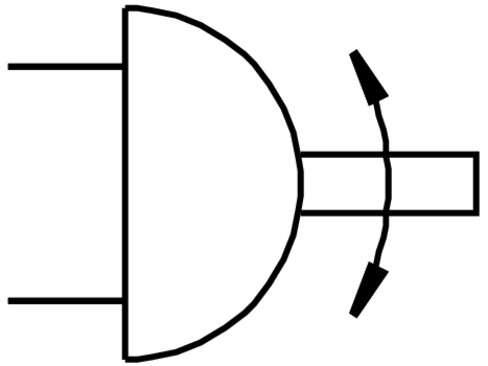

| Symbol | 00991265 |
| Operating pressure | 0.2 MPa … 1 MPa |
| Operating pressure | 2 bar … 10 bar |
| Mode of operation | Double-acting |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb |
| Type of (ignition) protection for dust | Ex h IIIC T120°C Db |
| Explosive ambient temperature | -10°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -10 °C … 60 °C |
| Theoretical torque at 6 bar | 5.15 Nm |
| Permissible mass moment of inertia | 0.09 kgm² … 0.55 kgm² |
| Type of mounting | With through-hole With internal thread Optionally: |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Drive shaft material | Tempered steel |
| Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized |
