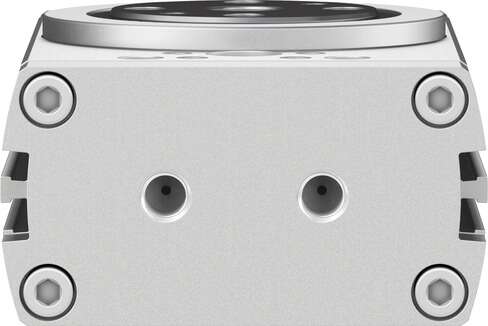

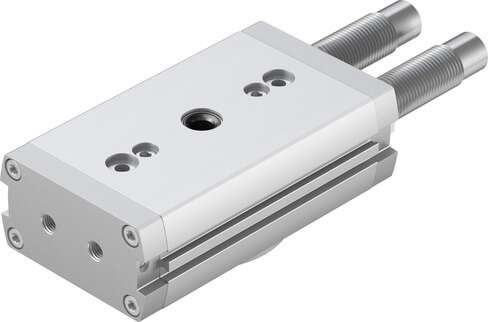

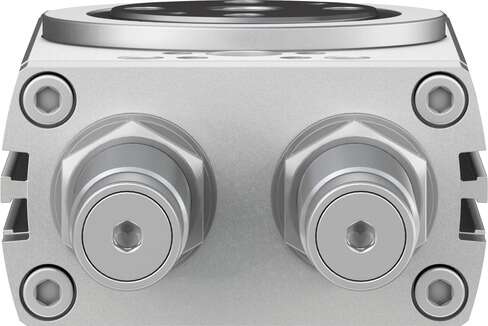

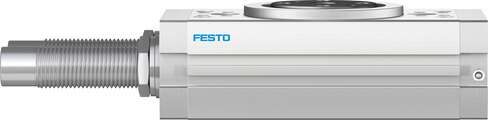

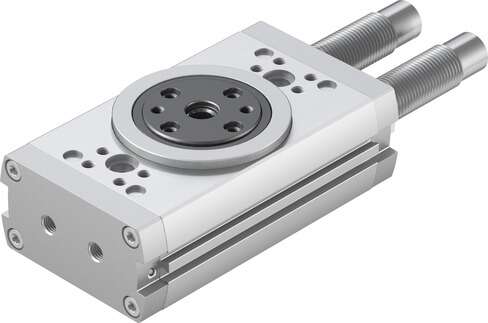

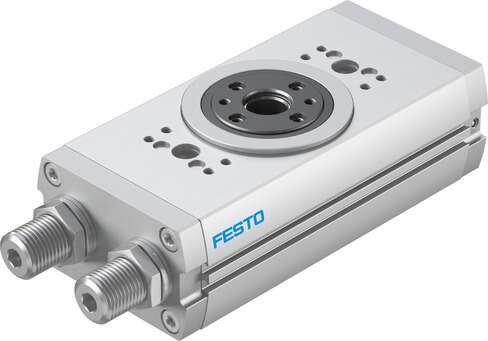

| Size | 32 |
| Cushioning angle | 82 deg |
| Adjustment range of swivel angle, both sides | +10 /-190 deg |
| Swivel angle | 180 deg |
| Cushioning | Internal hydraulic cushioning normal |
| Mounting position | Any |
| Structural design | Gear rack/pinion |
| Position sensing | For proximity sensor |

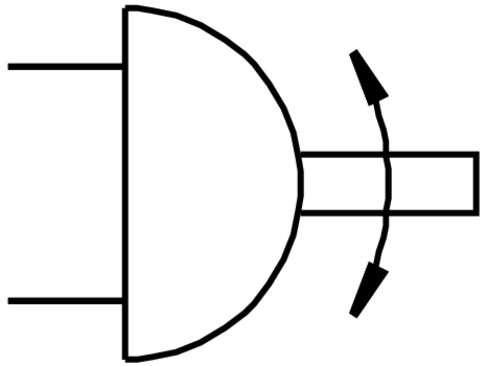

| Symbol | 00991265 |
| Operating pressure | 0.2 MPa … 1 MPa |
| Operating pressure | 2 bar … 10 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -10 °C … 60 °C |
| Theoretical torque at 6 bar | 10.1 Nm |
| Permissible mass moment of inertia | 2.6 kgm² |
| Product weight | 2,976 g |
| Type of mounting | With through-hole With internal thread Optionally: |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Drive shaft material | Tempered steel |
| Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Smooth anodized |
