| Size | 6 |
| Cushioning angle | 0 deg |
| Adjustment range of swivel angle | 0 deg … 180 deg |
| Swivel angle | 0 deg … 180 deg |
| Mounting position | Any |
| Precision adjustment | -5 deg |
| Mode of operation | Double-acting |

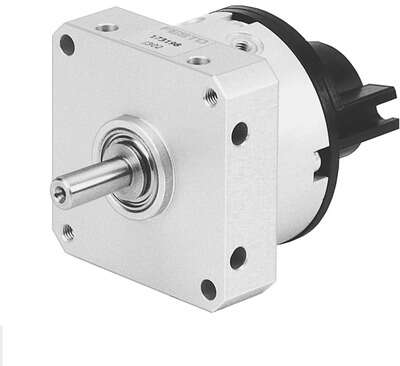

| Structural design | Rotary vane |
| Position sensing | For proximity sensor |

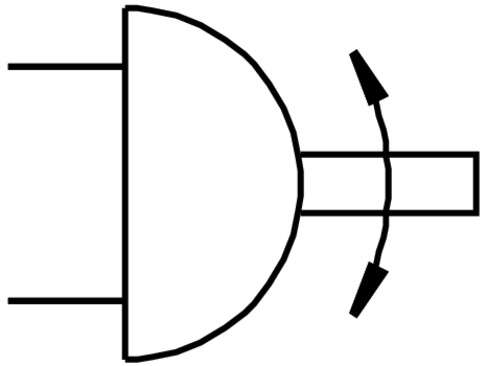

| Symbol | 00991265 |
| Operating pressure | 3.5 bar … 8 bar |
| Max. swivel frequency at 6 bar | 3 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Ambient temperature | 0 °C … 60 °C |
| Theoretical torque at 6 bar | 0.15 Nm |
| Permissible mass moment of inertia | 0.001 kgm² |
| Product weight | 85 g |
| Type of mounting | With internal thread |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Drive shaft material | High-alloy stainless steel |
| Seals material | TPE-U(PU) |
| Housing material | Aluminum Anodized |
