RT6-0007041

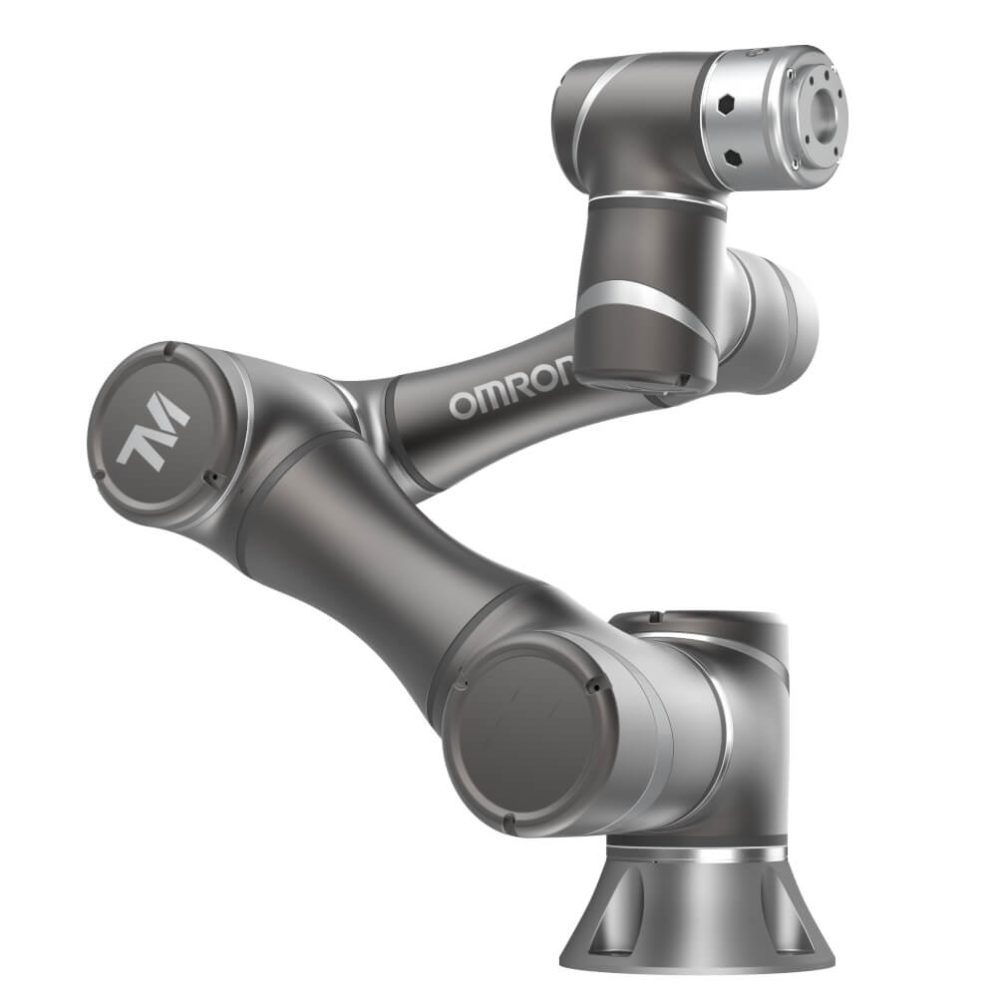

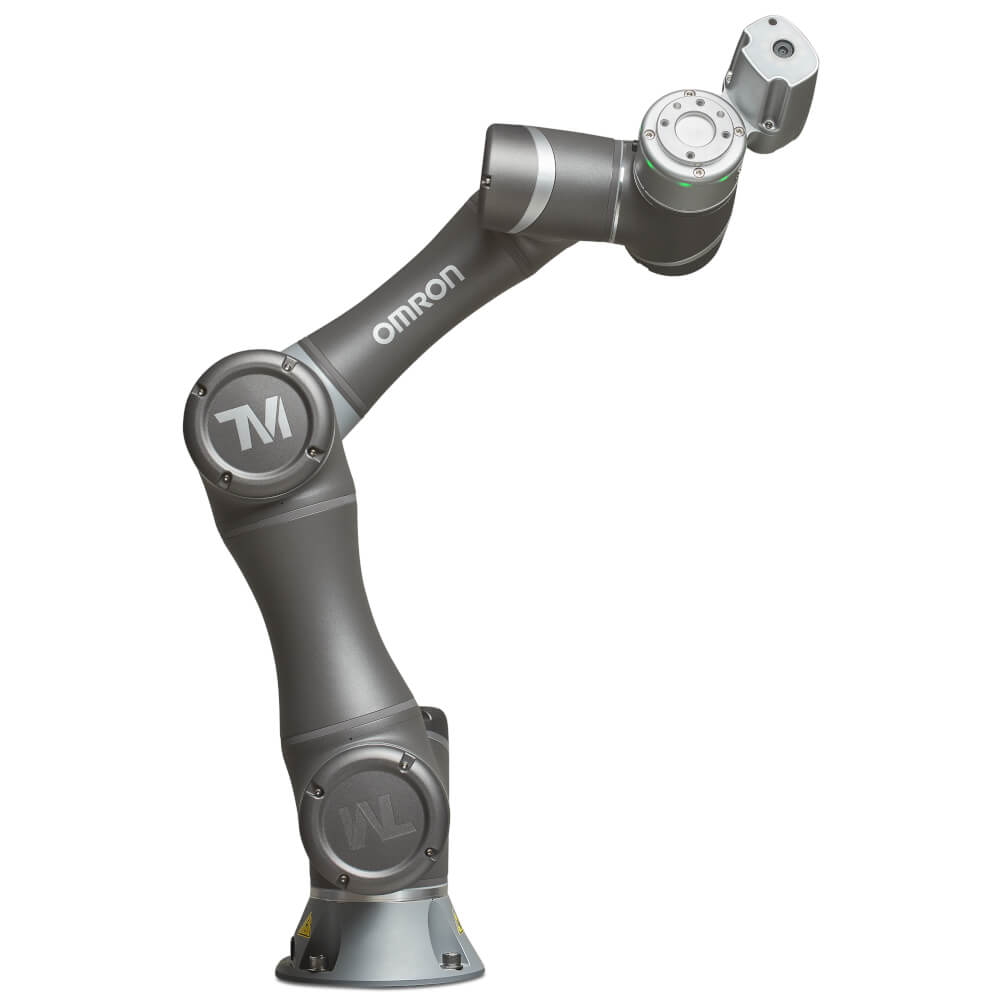

Bundle, Cobot, TM5-700, HW3.2, PROFINET & EtherNet/IP, Food Grade Grease



SKU: RT6-0007041
ID:1581776

Description

Payload 6 kg
Reach 700 mm
Communication port(s) EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, MODBUS/TCP, PROFINET Slave, Serial RS-232C
Speed (typical) 1.1 m/s
Maximum speed 4 m/s
Repeatability 0.05 mm
Power supply type AC
Vision ✔️
SEMI S2 certified
Food grade grease ✔️
Degree of protection (IP) IP54
SIL according to IEC 61508 2
Performance level according to EN ISO 13849-1 Level d
Cable length 3 m
Number of joints 6
Suitable for pedestal/floor mounting ✔️
Suitable for ceiling mounting ✔️
Suitable for wall mounting ✔️



Accessories

RT6-A000000 Accessory, TM, ROBOT STICK STAND



RT6-A000002 Accessory, TM, Kit, Calibration Set with Additional Pin



RT6-A000008 Accessory, TM, TM LAND MARK



RT6-A000010 Accessory, TM, MOBILE WORKSTATION(MWS)



RT6-A000012 Accessory, TM, Kit, SSD with Cable



RT6-A000021 Accessory, OMRON LAND MARK



RT6-S100000 License, Software, TM Identify & Measure



RT6-S100002 License, Software, TM External Vision



RT6-S100003 License, Software, TM OCR



RT6-S100005 License, Software, TMFlow Editor – Offline AOI



RT6-S200001 License, TMFlow Editor





Services

ROBOT 6MTH WRTY EXT LB COBOT After Sales Robotic Services – 6 Months Warranty Extension Package for Labor Collaborative Robot (Labor and Travelling costs included, Warranty Extension package requires Basic and/or Registered warranty)



ROBOT 6MTH WRTY EXT SP COBOT After Sales Robotic Services – 6 Months Warranty Extension Package for Spare Parts Collaborative Robot (Warranty extension package requires Basic and/or Registered warranty)





CSM_TM_I837-E_6_1

Datasheet
EN PDF
