| Nominal voltage, logic supply DC | 24 V |
| Nominal operating voltage DC | 24 V |
| Nominal current, logic supply | 0.15 A |
| Permissible range of logic voltage | ± 20 % |
| Max. current consumption for logic supply without clamping brake | 0.2 A |
| Short-circuit protection | Yes, exception: C1/C2 contact |
| Current rating at 40°C | 0.2 A |
| Fuse protection (short circuit) | no |
| Digital output design | Floating signal contact3 safe, 2-channel semiconductor outputs |
| Number of digital logic inputs | 10 |
| Digital outputs, switching logic | Semiconductor outputs: parameterizable PNP (plus-switching), 2-channel, equivalent/antivalent |
| Dimensions W x L x H | 112.2 mm x 99.1 mm x 28.7 mm |
| LED display (product-specific) | Fault (red)Normal operation (green)Safe state (yellow) |
| Safety function | Safe brake control (SBC)Safe speed range (SSR)Safe speed monitor (SSM)Safe torque off (STO)Safely limited speed (SLS)Safe operating stop (SOS)Safe stop 1 (SS1)Safe stop 2 (SS2) |
| PFH | 9.5E-9 |
| Proof test interval | 20 y |
| Hardware fault tolerance | 1 |
| SFF safe failure fraction | 99.5 % |
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in safety-related parts of control systems up to SIL 3, high demand |
| Safety integrity level (SIL) | Safe stop 2 (SS2)/SIL 3Safe stop 1 (SS1)/SIL 3Safe brake control (SBC)/SIL 3Safely limited speed (SLS)/SIL 3Safe operating stop (SOS)/SIL 3Safe speed monitor (SSM)/SIL 3Safe speed range (SSR)/SIL 3Safe torque off (STO)/SIL 3 |
| Performance Level (PL) | Safe brake control (SBC)/category 4, performance level eSafely limited speed (SLS)/category 3, performance level eSafe operating stop (SOS)/category 3, performance level eSafe stop 1 (SS1)/category 3, performance level eSafe stop 2 (SS2)/category 3, performance level eSafe speed monitor (SSM)/category 3, performance level eSafe speed range (SSR)/category 3, performance level eSafe torque off (STO)/category 4, performance level e |
| Diagnostic coverage | 97.5 % |
| Certified for safety functions to ISO 13849 (PL) | Product can be used in safety-related parts of control systems up to category 4, PL e |
| Certification | German Technical Control Board (TÜV) |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU machinery directive |
| Certificate issuing authority | 01/205/5165.02/19German Technical Control Board (TÜV) Rheinland |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -25 °C … 55 °C |
| Relative air humidity | 5 – 90 %Non-condensing |
| Degree of protection | IP20In mounted state |
| Ambient temperature | 0 °C … 40 °C |
| Product weight | 220 g |

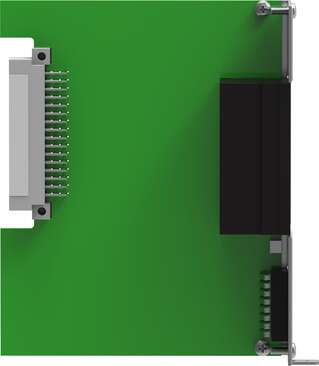

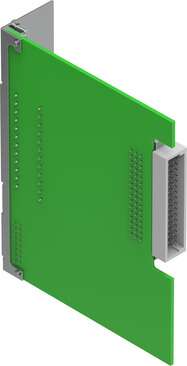

| Type of mounting | Plug-in module for CMMP-AS…-M3 |
| Note on materials | RoHS-compliant |
| Mounting position | Any |
| Wire ends | Cable end sleeve |
| Connection cross section | 0.25 mm² … 0.5 mm² |
| Electrical connection | Screw terminalPlug, straight |
| Display | LED green/yellow/red |
| Control elements | DIL switch |
| Logic input specification | IEC 61131-2, type 3 |
| Characteristics of logic input | 4 safe 2-channel inputs, equivalent/antivalent switching, test pulses configurable, function configurable6 safe, 1-channel inputs, test pulses configurable |
| Work range of logic input | 13 V … 28.8 V |
| Max. nominal input current | 0.015 A |
| Debounce time at inputs | 0.3 ms |
| Current rating per output | 50 mA |
| Max. current of digital logic outputs | 50 mA |
| Fuse protection for outputs | Short-circuit and cross-circuit monitoring |
| Minimum cycle time | 2 ms |
| Parameterization | Via SafetyTool |
