| Nominal voltage, logic supply DC | 24 V |
| Nominal operating voltage DC | 24 V |
| Nominal current, logic supply | 0.02 A |
| Permissible range of logic voltage | ± 20 % |
| Max. current consumption for logic supply without clamping brake | 0.03 A |
| Short-circuit protection | no |
| Current rating at 40°C | 0.2 A |
| Fuse protection (short circuit) | no |
| Digital output design | Floating signal contact |
| Number of digital logic inputs | 2 |
| Digital outputs, switching logic | Contact closes at STO |
| Dimensions W x L x H | 112.6 mm x 87.2 mm x 28.3 mm |
| LED display (product-specific) | Normal mode (green)/STO (yellow) |
| Safety function | Safe torque off (STO) |
| PFH | 1.27E-10 |
| PFD | 2.3E-5 |
| Proof test interval | 20 y |
| Hardware fault tolerance | 1 |
| SFF safe failure fraction | 99.2 % |
| Certified for safety function to ISO 13849 and IEC 61508 (SIL) | Product can be used in safety-related parts of control systems up to SIL 3, high demand |
| Safety integrity level (SIL) | Safe torque off (STO)/SIL 3/SILCL 3 |
| Performance Level (PL) | Safe torque off (STO)/category 4, performance level e |
| Diagnostic coverage | 97 % |
| Certified for safety functions to ISO 13849 (PL) | Product can be used in safety-related parts of control systems up to category 4, PL e |
| Certification | German Technical Control Board (TÜV) |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU machinery directiveAs per EU RoHS directive |
| Certificate issuing authority | 01/205/5165.02/19German Technical Control Board (TÜV) Rheinland |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -25 °C … 55 °C |
| Relative air humidity | 5 – 95 %Non-condensing |
| Degree of protection | IP20In mounted state |
| Ambient temperature | 0 °C … 40 °C |
| Product weight | 75 g |

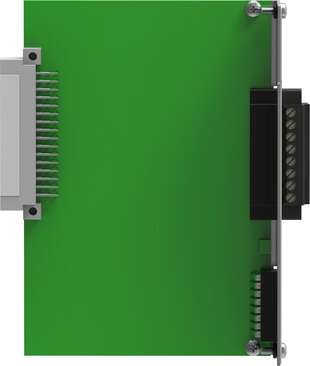

| Type of mounting | Plug-in module for CMMP-AS…-M3 |
| Note on materials | RoHS-compliant |
| Mounting position | Any |
| Wire ends | Cable end sleeve |
| Connection cross section | 0.25 mm² … 0.5 mm² |
| Electrical connection | Screw terminalPlug, straight |
| Display | LED green/yellow |
| Control elements | None |
| Logic input specification | Based on IEC 61131-2 |
| Characteristics of logic input | Galvanically isolated |
| Work range of logic input | 19.2 V … 28.8 V |
| Max. nominal input current | 0.03 A |
| Debounce time at inputs | 0.3 ms |
| Current rating per output | 200 mA |
| Max. current of digital logic outputs | 200 mA |
| Fuse protection for outputs | no |
