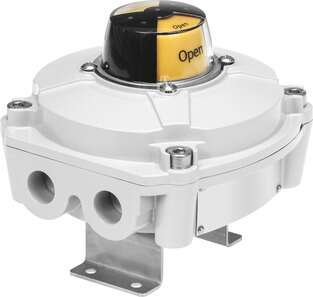

| Design | Rectangular |
| Based on norm | EN 60947-5-2ISO 5211VDI/VDE 3845 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Explosion prevention and protection | Zone 1 (ATEX)Zone 2 (ATEX)Zone 21 (ATEX)Zone 22 (ATEX)Zone 1 (CA)Zone 2 (CA)Zone 21 (CA)Zone 1 (US)Zone 2 (US)Zone 21 (US)Class I, Div. 1 (CA)Class I, Div. 2 (CA)Class II, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (US)Class II, Div. 1 (US) |
| ATEX category gas | II 2G |
| Type of ignition protection for gas | AEx d IIB T5 GbAEx nA IIC T5 GcEx d IIB T5 GbEx nA IIC T5 Gc |
| ATEX category for dust | II 2D |
| Type of (ignition) protection for dust | AEx tb IIIC T108°C DbEx tb IIIC T108°C Db |
| Explosion protection certification outside the EU | Class I, Div. 1 (CA)Class I, Div. 1 (US)Class I, Div. 2 (CA)Class I, Div. 2 (US)Class II, Div. 1 (CA)Class II, Div. 1 (US)Class III (CA)Class III (US)EPL Db (CA)EPL Db (US)EPL Gb (CA)EPL Gb (US)EPL Gc (CA)EPL Gc (US) |
| Explosive ambient temperature | -20°C <= Ta <= +60°C |
| Certificate issuing authority | CSA 263311 |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Safety integrity level (SIL) | SIL 2 |
| Measuring principle | Inductive |
| Ambient temperature | -20 °C … 60 °C |
| Switching output | NPN |
| Switching element function | N/O contact |
| Max. output current DC | 100 mA |
| Voltage drop | 3 V |
| Residual current | 0 mA … 0.5 mA |
| Short-circuit protection | Pulsed |
| DC operating voltage range | 10 V … 30 V |
| Idle current | 15 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 10-pinScrew terminal |
| Closable nominal conductor cross-section | 0.25 mm² … 2.5 mm² |
| Cable fitting | 1/2 NPT |
| Type of mounting | On flange as per ISO 5211With mounting bracket |
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 |
| Mounting position | Any |
| Product weight | 1700 g |
| Housing colour | Silver |
| Housing material | Die-cast aluminum |
| Seals material | NBR |
| Shaft material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Material of mounting bracket | High-alloy stainless steel |
| Pointer material | PC |
| Circlip material | High-alloy stainless steel |
| Disc material | High-alloy stainless steel |
| Position indicator | Yellow/red |
| Angle detection setting range | 0 deg … 90 deg |
| Storage temperature | -20 °C … 60 °C |
| Degree of protection | IP67NEMA 4/4X |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Contamination level | 3 |
