SFG 200

SFG 200

Base Jaws

SKU: SFG 200

Description

Description

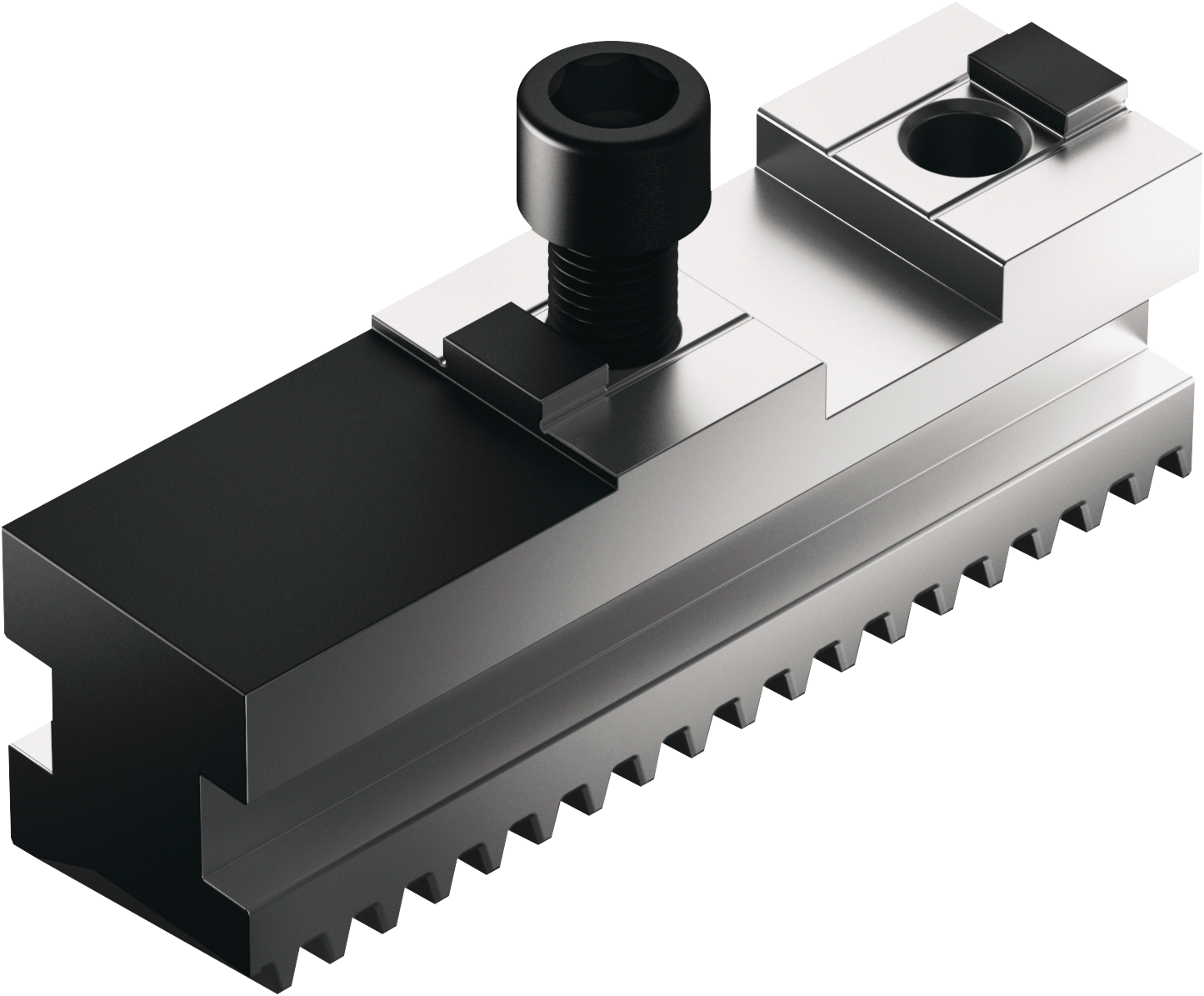

SFG 200, Base Jaws

Serration: Angled serration
Mounting: Tongue and groove
Groove width: 20 mm
Width of path: 10 mm
Delivery unit: 1 set = 3 pieces
Scope of delivery: Including cylindrical screws

Download now
2 MB 2 MB
1 MB 1 MB
442 KB 442 KB
545 KB 545 KB
278 KB 278 KB
418 KB 418 KB
601 KB 601 KB

Product group	Base Jaws
Mounting	Tongue and groove
Serration	Angled serration
Slot width N [mm]	20
Tab width S [mm]	10
Width B [mm]	22
Height H [mm]	35
Height H1 [mm]	32
Length L [mm]	90
Hole spacing b [mm]	40
Screws	M8x1
m/set [kg]	1.2
