SFG 800

Base Jaws

SKU: SFG 800

Description

Description

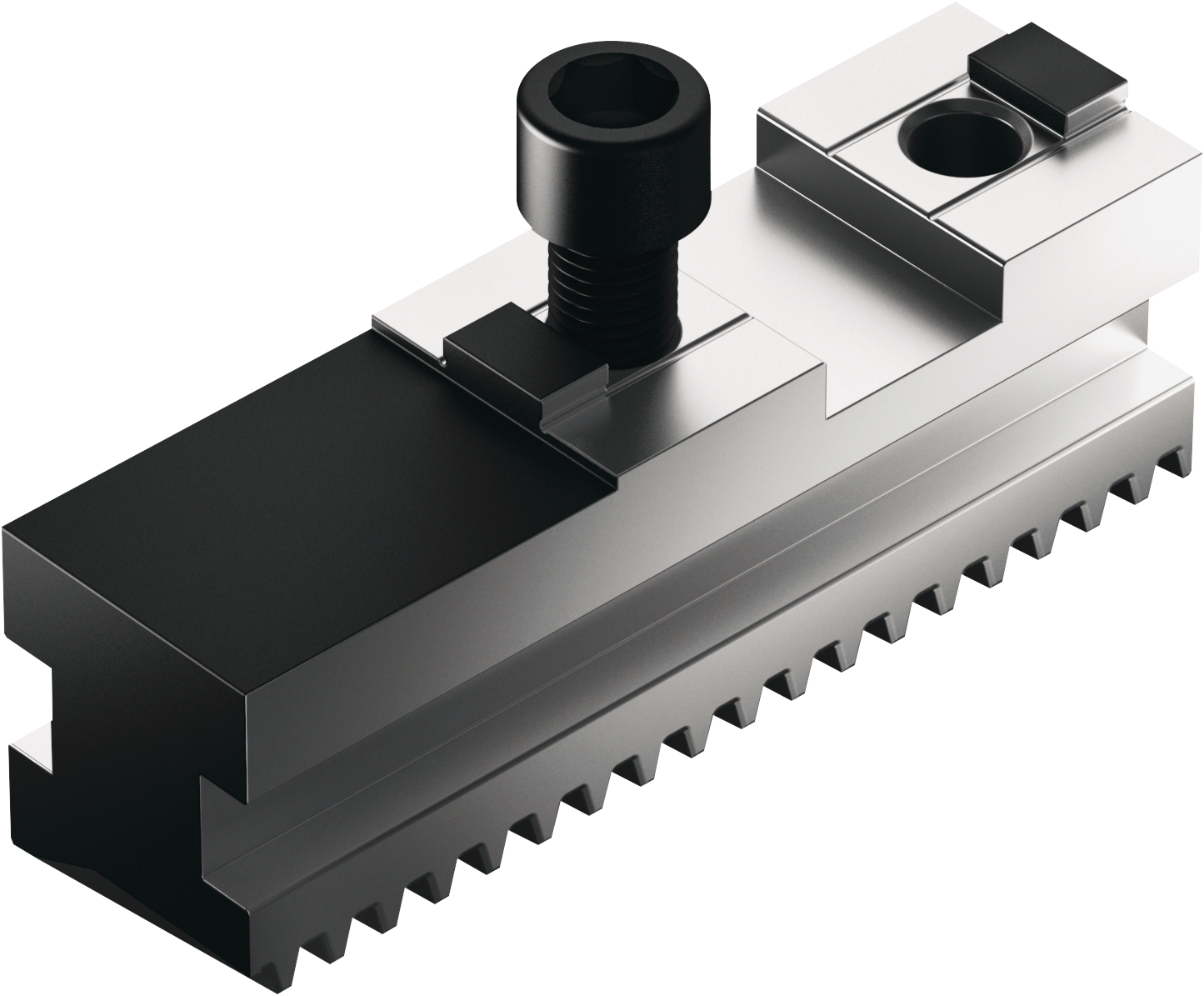

SFG 800, Base Jaws

  • Serration: Angled serration
  • Mounting: Tongue and groove
  • Groove width: 40 mm
  • Width of path: 24 mm
  • Delivery unit: 1 set = 3 pieces
  • Scope of delivery: Including cylindrical screws

Download now
2 MB
1 MB
442 KB
545 KB
278 KB
418 KB
601 KB

Product group Base Jaws
Mounting Tongue and groove
Serration Angled serration
Slot width N [mm] 40
Tab width S [mm] 24
Width B [mm] 65
Height H [mm] 62
Height H1 [mm] 58
Length L [mm] 264
Hole spacing b [mm] 82
Screws M20
m/set [kg] 18.69
