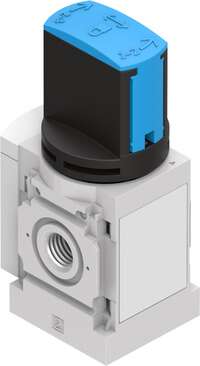

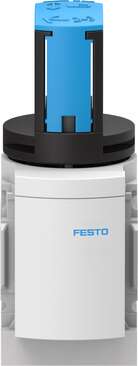

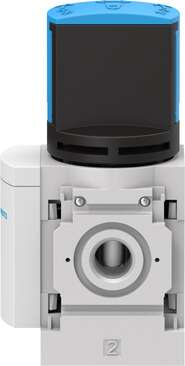

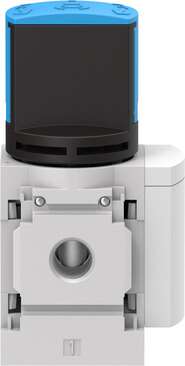

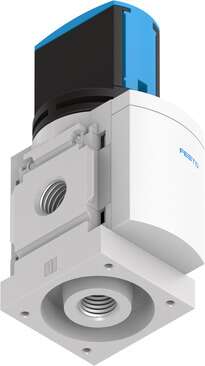

Shut off valve

GTIN: 4052568346744

541283

SKU: MS4N-EM1-1/4-Z
ID:518135

Description

Structural design Rotary gate valve
Actuation type Manual
Exhaust air function Without flow control option
Type of control Direct
Symbol 00991670
Valve function 3/2, bistable
Operating pressure 0 bar … 14 bar
C value 9 l/sbar
b-value 0.39
Standard nominal flow rate 2200 l/min
Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas
Information on operating and pilot media Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC) 2 – Moderate corrosion stress
Note on materials RoHS-compliant
Temperature of medium -10 °C … 60 °C
Ambient temperature -10 °C … 60 °C
For use in the food industry See supplementary material information
Type of mounting Line installationWith accessoriesOptionally:
Mounting position Any
Flow direction Non-reversible
Product weight 190 g
Pneumatic connection 1 1/4 NPT
Pneumatic connection 2 1/4 NPT
Pneumatic connection 3 1/4 NPT
Seals material TPE-U(PU)
Housing material Die-cast aluminum
