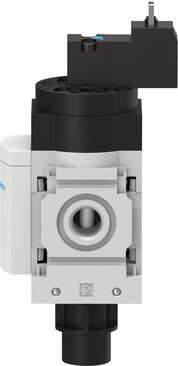

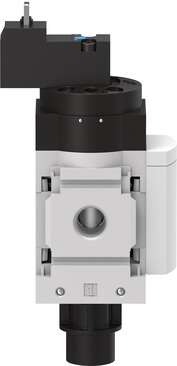

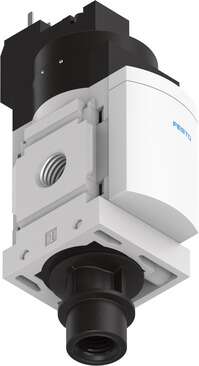

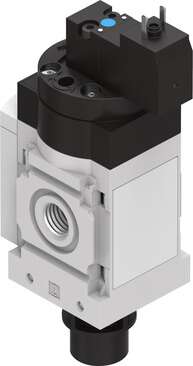

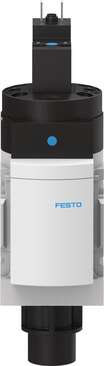

| Structural design | Piston gate valve |
| Actuation type | Electrical |
| Exhaust air function | Without flow control option |
| Manual override | DetentingNoneNon-detenting |
| Reset method | Mechanical spring |
| Type of control | Pilot-controlled |
| Valve function | 3/2, closed, monostable |
| Pressure gauge | G1/4 preparedG1/8 preparedwith pressure sensorwith pressure gauge |
| Operating pressure | 4 bar … 14 bar |
| Standard nominal flow rate | 1000 l/min … 2000 l/min |
| Duty cycle | 100% |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA24 V DC: 1.8 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C … 60 °C |
| Degree of protection | IP65 |
| Ambient temperature | -10 °C … 60 °C |
| Certification | c UL us – Recognized (OL) |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directiveas per EU explosion protection directive (ATEX)As per EU low voltage directive |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 22 (ATEX) |
| ATEX category gas | II 3G |
| ATEX category for dust | II 3D |
| Type of ignition protection for gas | Ex nA IIC T4 X Gc |
| Type of (ignition) protection for dust | Ex tc IIIC T105°C X Dc IP65 |
| Explosive ambient temperature | -10°C <= Ta <= +60°C |
| For use in the food industry | See supplementary material information |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Product weight | 273 g |
| Pneumatic connection 3 | G1/4 |
| Pilot air supply port | Internal |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
