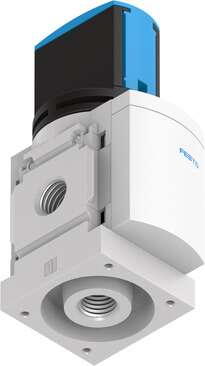

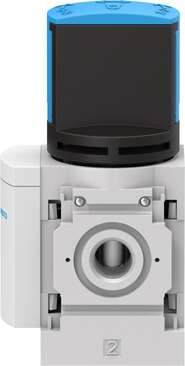

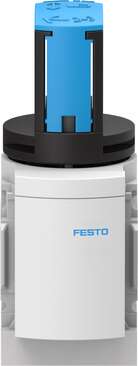

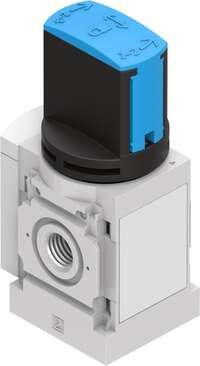

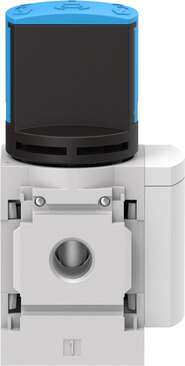

| Structural design | Rotary gate valve |
| Actuation type | Manual |
| Exhaust air function | Without flow control option |
| Type of control | Direct |
| Valve function | 3/2, bistable |
| Pressure gauge | G1/4 preparedG1/8 preparedwith pressure sensorwith pressure gauge |
| Operating pressure | 0 bar … 14 bar |
| Standard nominal flow rate | 1200 l/min … 2200 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Certification | c UL us – Recognized (OL) |
| For use in the food industry | See supplementary material information |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Mounting position | Any |
| Flow direction | Non-reversible |
| Pneumatic connection 3 | 1/4 NPT |
| Seals material | TPE-U(PU) |
| Housing material | Die-cast aluminum |
