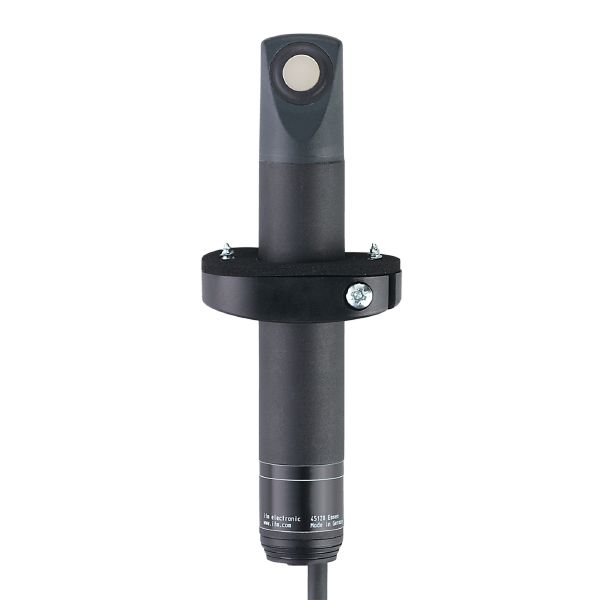

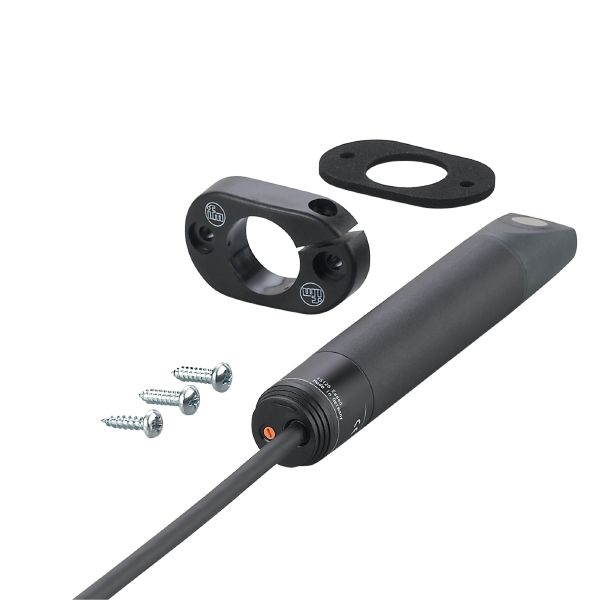

SL5102

Reliable airflow monitoring
For use in ventilation systems in building automation
User-friendly setting of the requested immersion depth of the sensor
Intuitive setting of the switch point via potentiometer
Signal output via potential-free relay contacts

SKU: SL5102

$130,90

Description

Product characteristics

Number of inputs and outputs	Number of relay outputs: 1
Process connection	Ø 23 mm

Application

Medium temperature [°C]	-10…50
Pressure rating [bar]	1

Electrical data

Operating voltage [V]	18…30 DC
Current consumption [mA]	50
Min. insulation resistance [MΩ]	100; (500 V DC)
Power-on delay time [s]	60

Inputs / outputs

Number of inputs and outputs	Number of relay outputs: 1

Outputs

Output signal	switching signal
Number of relay outputs	1
Contact rating	3 A (30 V DC / 250 V AC // cULus: 30 V DC / AC)
Switching function flow monitoring	relay de-energised when flow is present

Measuring/setting range

Gases

Setting range [cm/s]	100…1000
Greatest sensitivity [cm/s]	100…400

Accuracy / deviations

Temperature gradient [K/min]	5

Response times

Response time [s]	3…60

Gases

Response time [s]	3…60

Software / programming

Adjustment of the switch point	potentiometer

Operating conditions

Ambient temperature [°C]	-10…50
Max. relative air humidity [%]	90
Protection	IP 65

Tests / approvals

MTTF [years]

1202

UL approval

UL Approval no.	I029
File number UL	E174189

Mechanical data

Weight [g]	380
Dimensions [mm]	Ø 23 / L = 142
Materials	housing: PBT; sensor surface: titanium
Materials (wetted parts)	PBT; titanium
Process connection	Ø 23 mm

Displays / operating elements

Display

function	1 x LED, red
function	1 x LED, green

Accessories

Items supplied

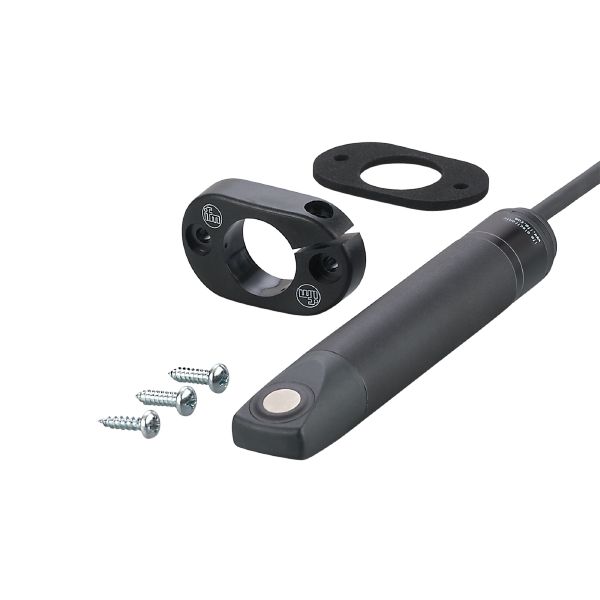

Mounting clamp: 1, E40048

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 6 m, PUR; 4 x 0.5 mm², PVC

SL5102-02_EN-US
