| Exhaust air function | With flow control option |
| Actuation type | Pneumatic |
| Mounting position | Any |
| Manual override | None |
| Structural design | Piston seat |
| Reset method | Mechanical spring |
| Type of control | Direct |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

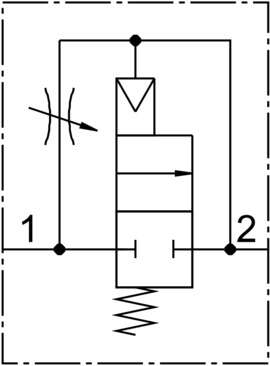

| Symbol | 00991513 |
| Valve function | 2/2 |
| Operating pressure | 2 bar … 20 bar |
| Standard nominal flow rate | 25000 l/min … 42000 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 – Moderate corrosion stress |
| Temperature of medium | -10 °C … 60 °C |
| Ambient temperature | -10 °C … 60 °C |
| Product weight | 3600 g |
| Type of mounting | Line installationWith accessoriesOptionally: |
| Pneumatic connection 1 | Battery module |
| Pneumatic connection 2 | Battery module |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
